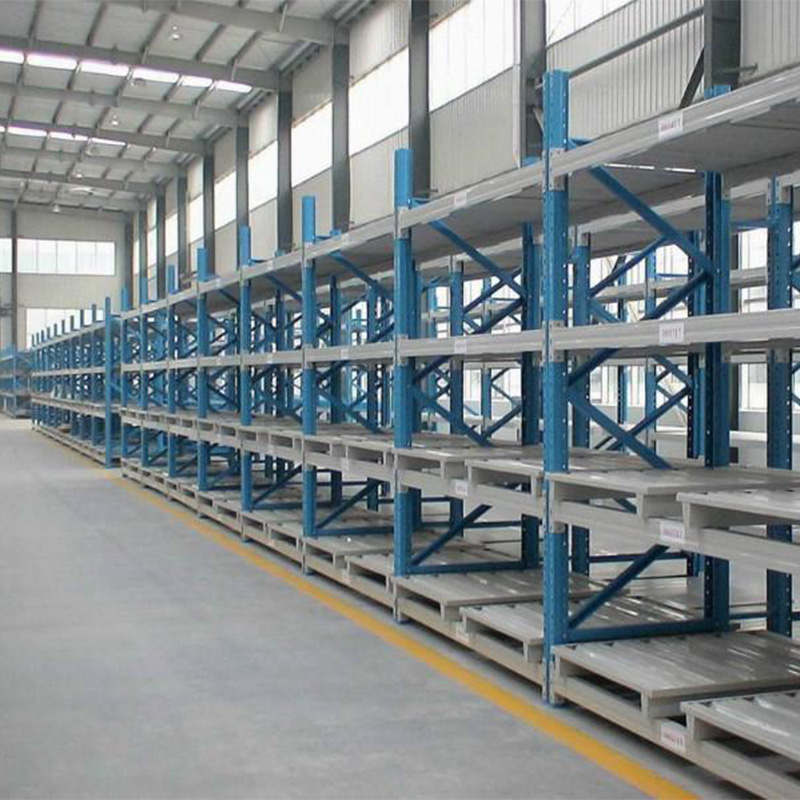

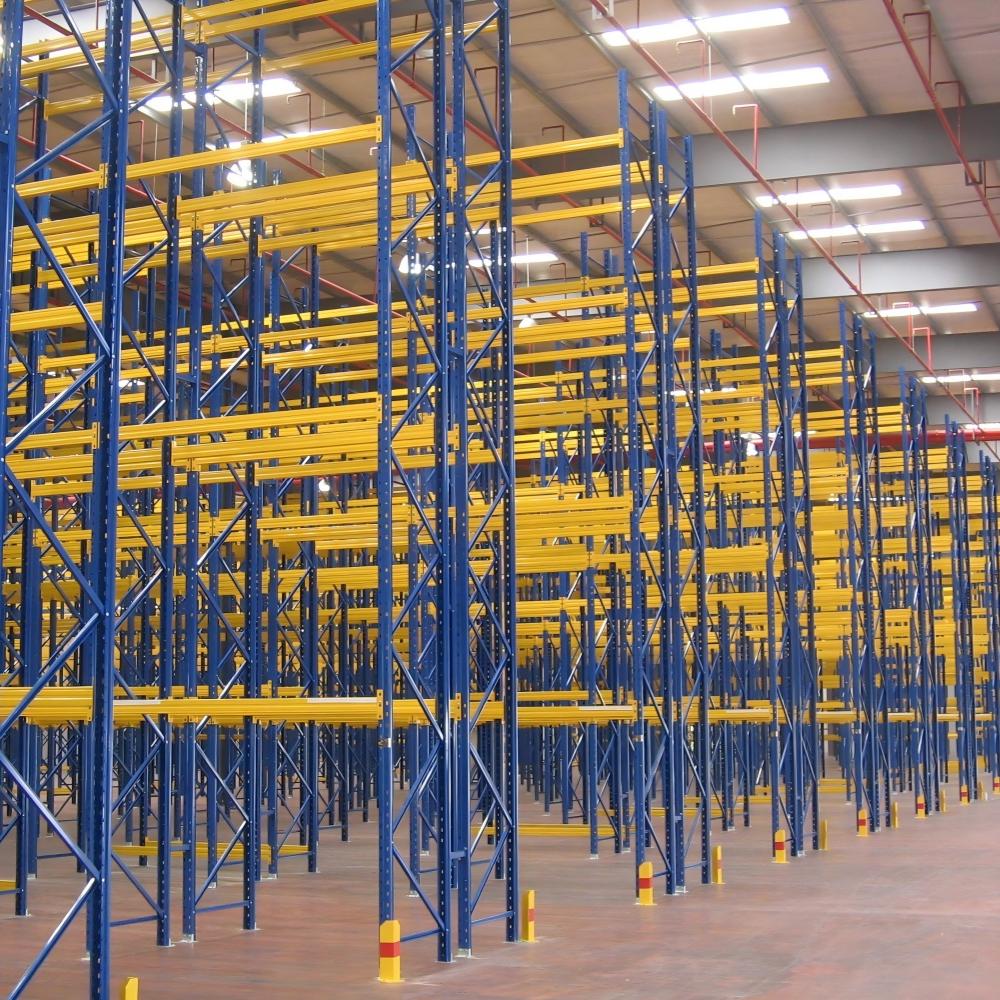

Heavy-Duty Rack

Product Overview

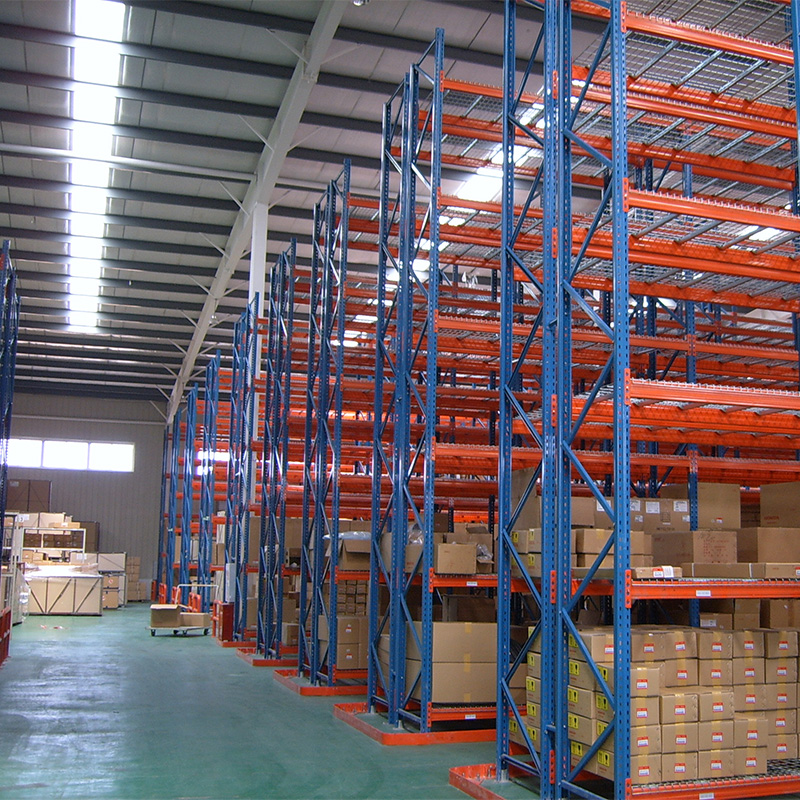

Heavy-duty racking is a storage system specifically designed for bulky and heavy goods. Constructed from thickened, high-quality structural steel, it features a modular design with detachable beams and uprights. Boasting exceptional load-bearing capacity, this system is optimized for use with forklifts and is ideally suited for heavy-duty storage environments such as large-scale warehouses and manufacturing plants.

Key Features

1. Heavy-Duty Storage:

Offers superior load-bearing capacity per shelf level, capable of accommodating pallets, heavy components, bulk materials, and other heavy cargo.

2. Maximized Space Utilization:

Features a multi-tiered, vertical layout that fully leverages a warehouse's vertical space to significantly increase storage capacity.

3. Efficient Cargo Access:

Facilitates rapid loading and retrieval of goods when used in conjunction with forklifts, making it ideal for high-volume, high-turnover warehousing operations.

4. Flexible & Organized Layout:

Allows for flexible configuration and arrangement, enabling the systematic classification and zoning of stored goods to streamline warehouse management and inventory control.

5. Robust & Durable Structure:

Possesses exceptional overall load-bearing strength, durability, and impact resistance, ensuring it meets the rigorous demands of long-term, heavy-duty storage applications. Advantages, Features, and Technical Specifications of Heavy-Duty Racking Systems

Product Advantages

1. Exceptional Load-Bearing Capacity:

Specifically engineered for heavy and palletized goods, meeting the demands of large-scale warehousing operations.

2. Vertical Layered Storage:

Significantly enhances warehouse space utilization efficiency and reduces storage costs.

3. Forklift Compatibility:

Facilitates highly efficient goods retrieval and storage, making it ideal for high-turnover warehousing environments.

4. Robust and Durable Structure:

Features strong impact resistance; designed to withstand long-term use without deformation or damage.

5. Wide Range of Applications:

Suitable for diverse settings, including large-scale manufacturing plants, logistics warehouses, and cold chain storage facilities.

Product Features

1. Modular Assembly Design:

Allows for convenient installation, disassembly, and relocation, offering flexible scalability for future expansion.

2. Adjustable Shelf Heights:

Shelf levels can be freely adjusted to accommodate palletized goods of varying specifications and heights.

3. Categorized and Zoned Storage:

Enables clear classification and zoning of goods, providing at-a-glance visibility for easy inventory management and control.

4. Customizable Dimensions and Load Capacity:

Can be tailored to specific size and load-bearing requirements to fit various warehouse layouts.

5. High Safety and Stability:

Ensures a high level of safety and structural stability, effectively safeguarding both the stored goods and the operating personnel.

Technical Specifications

1. Premium Materials:

Constructed using thickened, high-quality cold-rolled structural steel, ensuring superior material integrity and uniform load distribution.

2. Secure Beam-to-Upright Connection:

Features a snap-in interlocking mechanism between beams and uprights, ensuring a firm connection that remains secure under heavy loads.

3. Advanced Surface Treatment:

Undergoes acid pickling, phosphating, and electrostatic powder coating processes to provide excellent rust and corrosion resistance, ensuring durability and a long service life.

4. Enhanced Safety Features:

Uprights are equipped with safety pins and anti-collision foot guards, providing multiple layers of protection to maximize safety.

5. Precision Punching Technology:

Utilizes a precise punching process that facilitates easy shelf height adjustment and ensures high installation accuracy.

Heavy-Duty Racking: Materials & Technical Parameters (Concise Version)

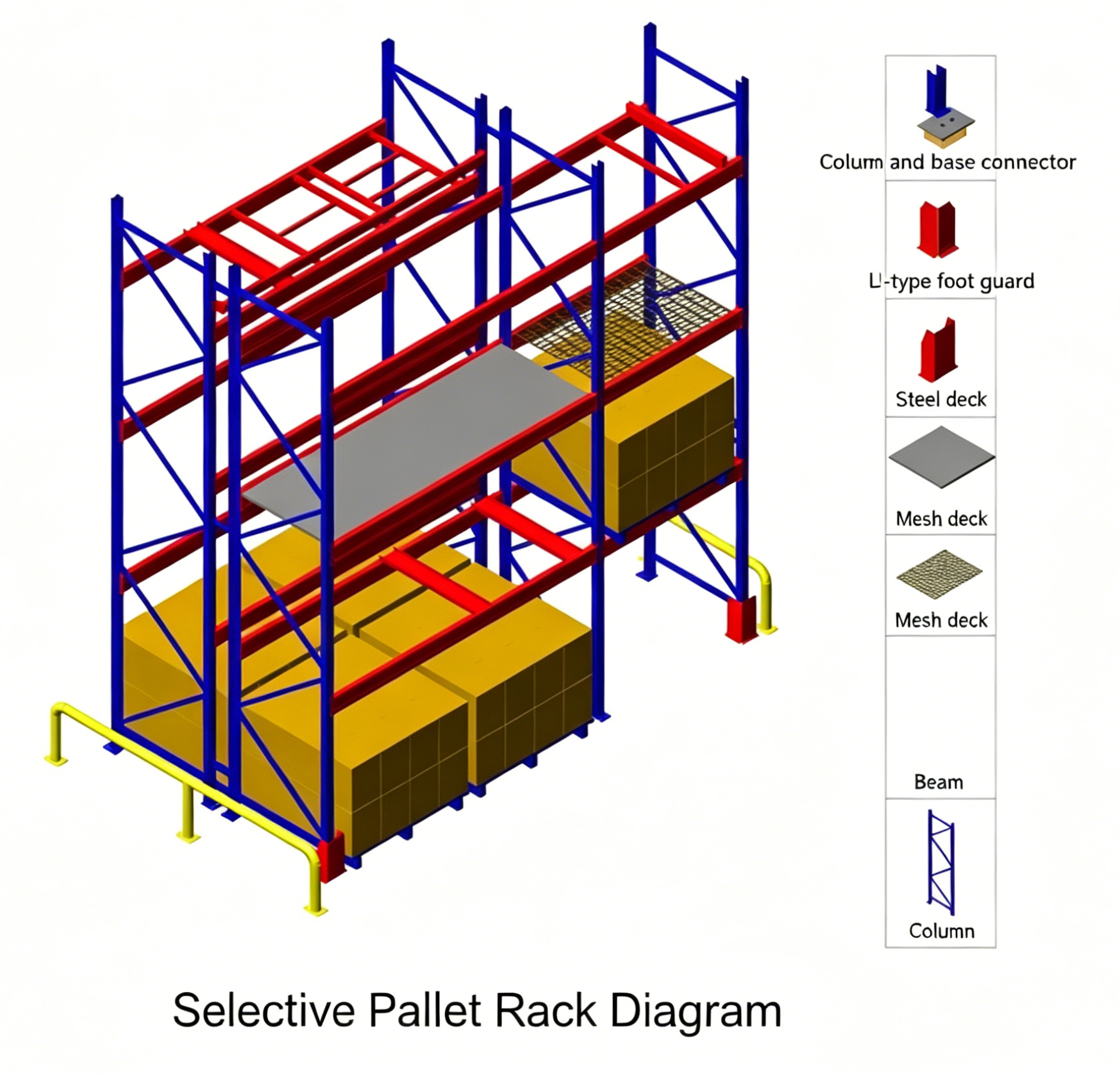

I. Primary Construction Materials

1. Uprights (Columns): High-quality hot-rolled or cold-rolled H-beams, or thickened structural steel profiles; characterized by high tensile strength and exceptional compressive resistance.

2. Beams: Specialized closed-section welded beams or thickened rectangular tubes; designed to resist bending and prevent deformation under load.

3. Protective Accessories: Thickened steel corner guards, anti-collision guardrails, safety pins, and backstop bars (pallet stoppers).

4. Surface Treatment: Acid pickling and phosphating for rust removal, followed by electrostatic powder coating.

Basic Technical Parameters

1. Single-Tier Load Capacity:

Standard 800–3000 kg/tier; heavy-duty versions available via customization.

2. Standard Height:

2000–6000 mm; heights can be customized.

3. Shelf Level Adjustment:

Uprights feature punched holes at 75 mm or 50 mm intervals, allowing for free adjustment of shelf heights.

4. Connection Method:

Uprights and beams utilize a snap-in interlocking mechanism, secured with safety pins to ensure a firm and stable installation.

5. Surface Finish:

Electrostatic powder coating; features rust-proof, impact-resistant, and corrosion-resistant properties.

6. Usage Method:

Designed for use with forklifts and pallet jacks to access and retrieve palletized goods.

7. Structural Form:

Modular assembly structure; allows for infinite splicing and expansion by adding additional units.

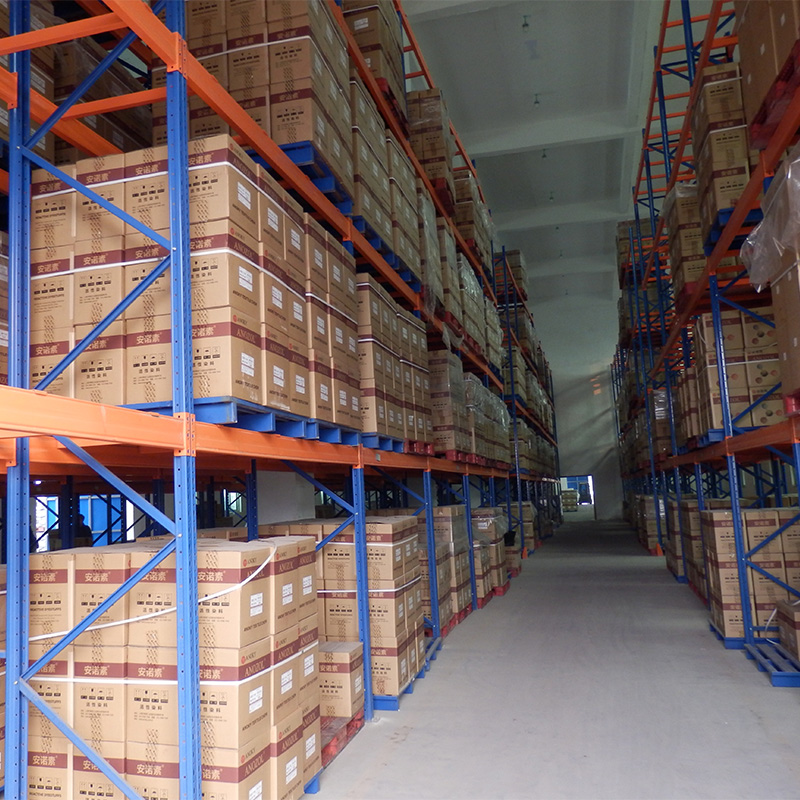

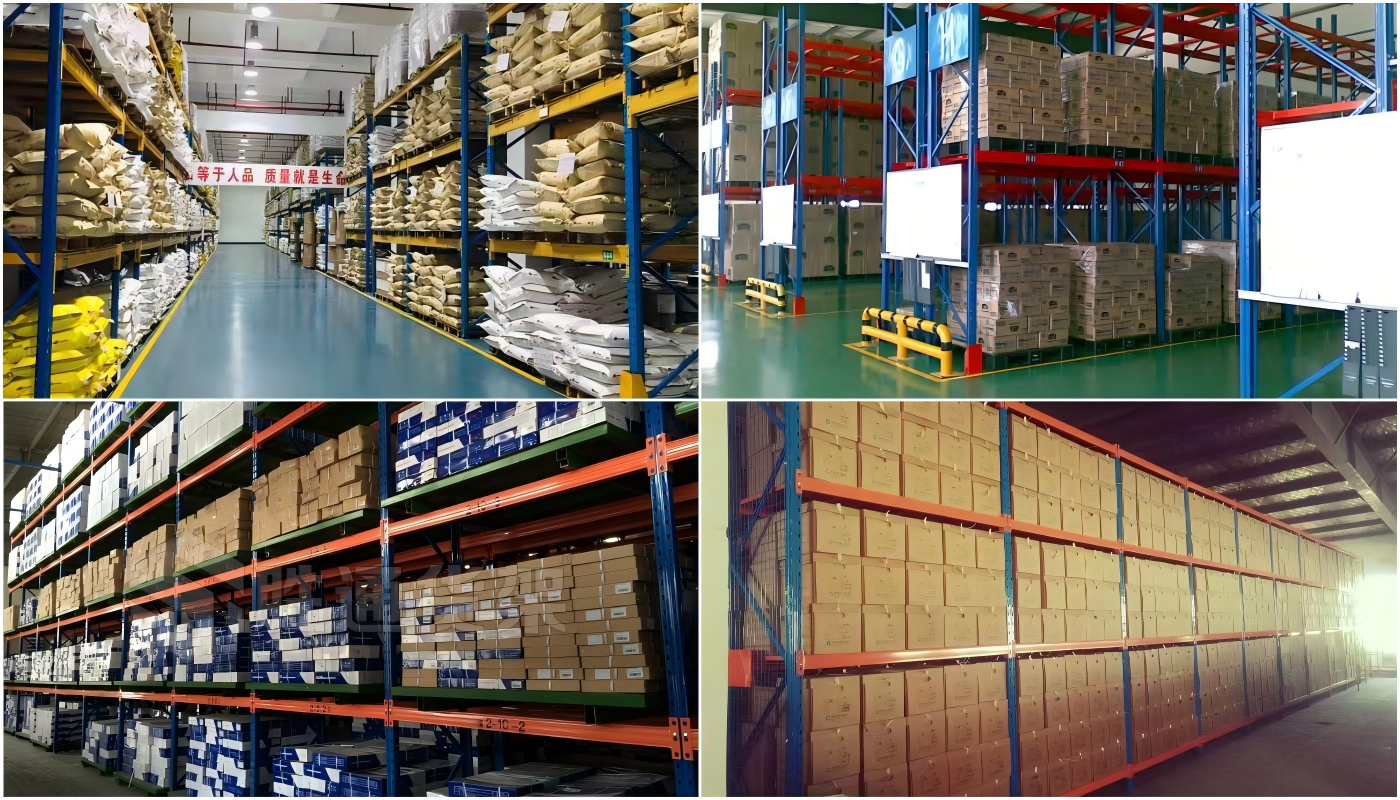

Heavy-Duty Racking: Application Scenarios

1. Industrial Factory Warehouses:

Storage of raw materials, semi-finished products, heavy-duty spare parts, and palletized goods.

2. Logistics and Distribution Centers:

High-volume stacking of full-pallet loads, facilitating rapid turnover via forklift operations.

3. Large-Scale E-commerce Warehouses:

Storage of full cartons and bulk inventory to maximize warehouse storage capacity.

4. Building Materials and Hardware Industries:

Centralized storage of pipes, sheet materials, and heavy-duty hardware supplies.

5. Cold Chain and Food Warehouses:

Categorized storage of full-pallet food and merchandise loads; features moisture-resistant and durable properties.

6. Auto Parts and Machinery Manufacturing:

Storage and organization of large components, heavy industrial materials, and equipment parts.

7. Furniture and Paper Product Industries:

Palletized storage solutions for bulky items and full batches of finished goods.

Specification Material Parameters

Heavy-Duty Racking: Operational Guidelines

1. Proper Loading and Placement

Goods should be stacked as complete pallet units. Place heavier items on lower tiers and lighter items on upper tiers, ensuring even distribution. Overloading and unbalanced (single-sided) loading are strictly prohibited.

2. Access and Retrieval Operations

Use forklifts or hydraulic pallet jacks to access and retrieve goods smoothly. Operate vehicles at a slow speed; striking the uprights or beams is strictly prohibited.

3. Shelf Level Adjustment

Adjust the position of the beams according to the height of the goods; ensure the locking clips are securely fastened and the safety pins are inserted. Verify the structure is stable before loading any goods.

4. Safe Usage

Do not climb on or step on the shelving units. Do not arbitrarily dismantle or alter the structure of the racks. Keep aisles and passageways clear at all times.

5. Routine Inspection

Periodically inspect the beam locking clips, safety pins, and uprights for any signs of deformation or damage. Promptly repair or replace any defective components.

6. Protective Measures

Install anti-collision guards (foot protectors) on the rack uprights. Ensure forklifts are operated safely and in accordance with protocols to avoid collisions, thereby extending the service life of the shelving system.

Heavy-Duty Shelving: Common Questions and Usage Recommendations (Concise Bullet Points)

I. Common Questions

1. How much weight can each shelf level support?

Standard models support a load capacity of 800–3,000 kg per level; heavier-duty versions with reinforced load-bearing components can be customized based on the specific weight requirements of your goods.

2. Can the shelf levels be adjusted?

Yes. The uprights feature a dense, perforated design with adjustable spacing, allowing them to accommodate palletized goods of various heights.

3. Is installation difficult?

No. The system features a modular, interlocking structure that requires no welding, making assembly, disassembly, and relocation quick and convenient.

4. Are the racks easily damaged during forklift operations?

The shelving units possess high structural resilience. They can be equipped with anti-collision guards and safety barriers for added protection; furthermore, operating forklifts slowly and in accordance with safety protocols significantly reduces the risk of collision damage.

5. Are the racks prone to rusting or paint chipping?

No. The racks undergo a surface treatment process involving rust removal, phosphating, and electrostatic powder coating, providing excellent resistance to rust and physical impact. Under normal warehouse conditions, they offer a long service life.

6. Can I add extra levels or extend the length of the racks later on?

Yes. The system supports multi-unit splicing and indefinite extension, allowing you to add extra levels or bays at any time to flexibly expand your storage capacity.

7. Are there specific requirements for storing goods?

Yes. Goods must be placed on pallets in an organized manner to ensure even weight distribution. Overloading, off-center loading, and stacking goods in a way that leaves them suspended or unbalanced are strictly prohibited.

II. Usage Recommendations

1. Place heavier goods on the lower shelf levels and lighter goods on the upper levels. Strictly avoid loading goods in a way that creates an unbalanced, one-sided load.

2. Operate forklifts slowly and cautiously when entering or exiting the rack aisles. Strictly avoid crashing into the rack uprights or beams.

3. Conduct routine inspections of the locking clips, safety pins, and uprights to check for any signs of deformation or damage. If any damage is discovered, replace the affected components immediately. 4. Keep aisles clear; do not unauthorizedly cut or modify the shelving structure.

5. Ensure proper ventilation in damp or corrosive environments to extend the service life of the shelving.
