Perforated metal fencing is a protective barrier manufactured from metal sheets—such as galvanized steel or cold-rolled steel—that have undergone specialized punching, bending, and anti-corrosion treatments using professional equipment. Featuring a flat surface, uniform perforations, and a robust structure, these fences can be customized to specific dimensions as required. They serve as a commonly used isolation and safety barrier in industrial facilities, factory complexes, and warehouses.
1. Area Isolation: Defines functional zones within warehouses, workshops, and factory grounds to standardize site management.
2. Safety Protection: Prevents personnel from inadvertently entering hazardous zones, protects equipment, and helps avert accidents.
3. Transparency & Ventilation: The perforated design allows light to pass through and ensures airflow, facilitating easy visual monitoring of the conditions within the enclosed area.
4. Impact Resistance & Durability: Constructed from metal materials, the fencing offers high impact resistance, resists deformation, and provides long-term protective performance.
5. Enclosure & Partitioning: Can be utilized to enclose walkways, equipment, or specific factory sections, thereby achieving an orderly spatial division.
Formed from a single, solid metal sheet, the structure contains no loose wires; it offers high impact resistance and is difficult to climb. It effectively delineates safety zones and prevents personnel from approaching hazardous equipment or areas, providing a level of protection far superior to that of standard wire mesh fencing.
Constructed from robust, corrosion-resistant materials, the fencing is highly resistant to deformation, damage, and rust. It withstands exposure to sunlight, rain, and external physical impacts, ensuring a long service life even in demanding outdoor or industrial environments.
The perforated, open-work design allows for ample natural lighting and maintains clear sightlines, enabling real-time monitoring of internal conditions. Additionally, it promotes ventilation and helps prevent dust accumulation, ensuring the enclosed area remains airy and comfortable rather than becoming stuffy or confined.
Featuring a modular, interlocking design, the fencing allows for rapid assembly without the need for complex construction procedures. The flat, smooth surface resists dust accumulation and staining, making routine cleaning and upkeep effortless, which translates to lower long-term maintenance costs.
Specifications—including sheet thickness, perforation size, overall dimensions, color, and mounting methods—can be flexibly customized to suit specific application scenarios. This ensures a perfect fit for the diverse requirements of various settings, such as workshops, warehouses, and factory complexes. 6. High Aesthetic Appeal and Neatness
The mesh surface is flat with precisely aligned perforations; the overall design is simple yet imposing. It can be finished in various spray-painted colors to enhance the overall neatness and aesthetic appeal of the site.
Manufactured from a single sheet of metal via a punching process, it features no splice seams and possesses strong structural integrity. This eliminates issues such as cracking or wire detachment, ensuring more reliable protection.
The uniform perforation design strikes a balance between isolation/protection and natural lighting/ventilation, avoiding the visual obstruction and poor airflow issues typically associated with solid, enclosed barriers.
The openwork structure effectively reduces wind resistance, ensuring strong wind stability for outdoor use. The reinforced base design ensures stability and prevents tipping.
The mesh surface and edges undergo a polishing treatment to ensure a smooth, burr-free finish, preventing scratches to personnel or goods and ensuring safer operation.
Suitable for a wide range of applications—from isolating equipment within indoor workshops and partitioning warehouse zones to serving as perimeter fencing for outdoor factory grounds and road barriers—offering multi-purpose utility.
Constructed from thickened cold-rolled steel plates or hot-dip galvanized steel plates. These materials feature high density, exceptional toughness, and strong resistance to bending and compression, thereby guaranteeing the structural integrity of the entire unit.
Utilizes advanced CNC equipment for punching, ensuring uniform hole sizes and precise alignment. The hole diameters are accurate and deviation-free, resulting in a beautifully formed product free of defects.
Undergoes a multi-layer treatment process involving pickling, phosphating, and either electrostatic powder coating or hot-dip galvanizing. The coating exhibits strong adhesion, providing excellent rust and corrosion resistance, making it suitable for use in humid or harsh outdoor environments.
The edges are reinforced through a bending process to enhance the rigidity of the mesh surface. This prevents deformation under load and significantly boosts the unit's overall load-bearing and impact-resistance capabilities.
Features a standardized design with pre-drilled holes and specialized connection fittings. This allows for rapid assembly and secure fastening during installation, while also facilitating easy disassembly and relocation, ensuring the unit is fully reusable. 6. Structural Design (Mechanical Principles)
Designed to integrate a frame and mesh panel in accordance with engineering mechanics, the structure ensures uniform load distribution and excellent overall stability, making it highly resistant to external impact forces and less prone to damage.
The perforated hoarding structure consists of an isolation barrier system primarily constructed from perforated metal panels. By varying the mesh dimensions, layout configurations, and surface treatments, it can be fabricated into various types of protective fencing. It is widely utilized in urban areas as an environmental noise barrier for municipal transportation infrastructure—such as highways, railways, and subway lines—as well as for noise-generating sources including building facades, power generation rooms, and industrial factories. Furthermore, thanks to its excellent air permeability, perforated hoarding serves effectively as a protective barrier against coastal typhoons. This product is characterized by its robust durability, aesthetic appeal, and superior protective capabilities.
1. Fabricated through the extrusion and assembly of high-quality materials, the structure features internal steel pipe reinforcement that significantly enhances its overall strength.
2. The height and color of the hoarding can be fully customized to meet specific client requirements.
3. Perforated hoarding is simple and quick to install; it offers a sturdy, secure structure with a high resistance to wind loads.
4. Property owners (or users) may display advertisements on the perforated surface of the protective barrier, thereby allowing them to lease out advertising space and maximize the commercial value of the site.
5. It possesses exceptional resistance to extreme environmental conditions, including seawater corrosion, ultraviolet radiation, and freezing temperatures.
6. The structure is easy to dismantle and can be reused multiple times.
Main Panel Material : Common Thicknesses: 1.2mm, 1.5mm, 2.0mm | Q235 Cold-Rolled Steel / Hot-Dip Galvanized Steel
Perforation Pattern : Round, Square, or Slotted Holes; Standard Diameters: 8–20mm | Integrated CNC Punching; Uniform Hole Spacing
Frame Structure : Square Tube Frame: 20×40mm, 30×30mm, 40×40mm | Thickened Galvanized Square Tubing; Full-Weld Reinforcement
Overall Dimensions : Standard Heights: 1.2m, 1.5m, 1.8m, 2.0m; Width: 1.0–2.0m (per panel) | Supports Customization for Non-Standard Lengths, Widths, and Heights
Upright Posts : Round or Square Tube Posts; Wall Thickness: 1.5–2.0mm | Galvanized Steel Tubing; Stable Load-Bearing Support
Surface Treatment : Electrostatic Powder Coating / Anti-Corrosion Galvanizing | Acid Pickling & Phosphating Pre-treatment; Abrasion-Resistant and Rust-Proof Coating
Connection Method : Screw Assembly, Snap-Fit Splicing, Flange Fixing | Simple Installation; Fully Demountable and Relocatable
Structural Features : Panel Edges Folded for Reinforcement; High Overall Rigidity; Impact-Resistant | Edges Ground Smooth (Burr-Free) to Prevent Scratches
Applicable Environments : Indoor Workshops, Warehouse Zoning, Outdoor Factory Areas, Equipment Protection | Weather-Resistant; Impact-Resistant; Easy to Clean
Color Options : Gray, Blue, Yellow, White, and Other Common Industrial Colors | Eco-Friendly Powder Coating; Fade-Resistant
Factory workshop zoning, assembly line partitioning, and workstation demarcation; helps standardize production workflow and maintain a neat, orderly environment.
Warehouse zone division, material segregation, and perimeter protection for shelving units; prevents accidental collisions between personnel or forklifts and stored goods.

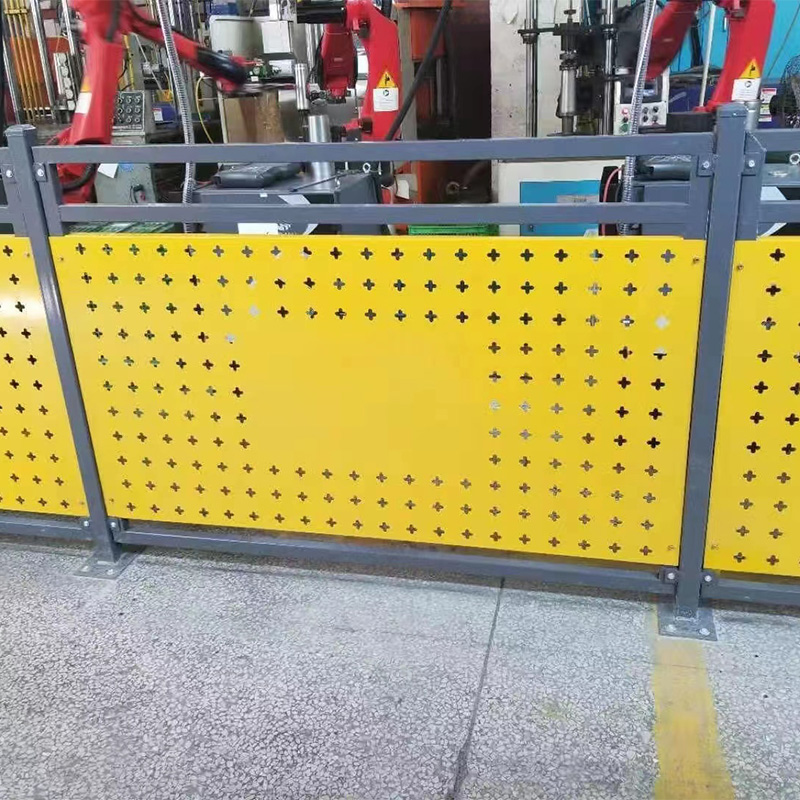

Safety enclosures and perimeter fencing for machine tools, robots, and automated equipment; prevents unauthorized personnel from inadvertently entering hazardous zones.
Perimeter fencing, road dividers, and green belt protection; offers an open, aesthetically pleasing design that is wind-resistant and durable.
Separation of pedestrian walkways and forklift lanes; segregates foot traffic from vehicles to eliminate safety hazards associated with intersecting operations.
Parking space dividers, perimeter fencing for grounds, and zone partitioning for underground garages; sturdy, visually appealing, and easy to clean.
Protective enclosures for electrical equipment and machinery rooms; provides ventilation and visibility, ensuring safe isolation while facilitating convenient inspections.
Interior partitions, stairwell enclosures, and screening for equipment rooms; features a high-end aesthetic combined with robust protective capabilities.
Zoning within factory workshops, assembly line dividers, and workstation demarcation; streamlines production workflows and ensures a neat, organized environment.
Division of warehouse zones, material storage areas, and perimeter protection for shelving units; prevents accidental collisions between personnel or forklifts and stored goods.
Safety enclosures surrounding machine tools, robots, and automated equipment; restricts unauthorized personnel from inadvertently entering hazardous zones.
Perimeter fencing, road dividers, and green belt protection; offers an open, aesthetically pleasing design that is wind-resistant and durable.
Separation of pedestrian walkways and forklift lanes; segregates foot traffic from vehicles to eliminate safety hazards associated with intersecting operations.
Parking space dividers, perimeter fencing for grounds, and zone partitioning for underground garages; sturdy, visually appealing, and easy to clean.
Protective enclosures for electrical equipment and machinery rooms; provides ventilation and visibility, ensuring safe isolation while facilitating convenient inspections.
Interior partitions, stairwell enclosures, and screening for equipment rooms; features a high-end aesthetic combined with robust protective capabilities.
- Causes: Collisions with forklifts, impact from heavy objects, leaning or squeezing by personnel, or use of thin-gauge sheet metal.
- Solutions: Install heavy-duty fencing in high-traffic passageways; strictly prohibit leaning against or striking the fence; perform minor corrections for slight damage, and replace the mesh panel entirely if deformation is severe.
- Causes: Improper installation/insecure fastening, prolonged vibration, lack of structural reinforcement, or uneven flooring.
- Solutions: Regularly tighten bolts; install diagonal braces to reinforce support posts; level the ground prior to installation; reinforce fastening at corner sections.
- Causes: Scratches or impacts during handling, exposure to outdoor humidity, acidic or alkaline environments, or poor surface coating quality.
- Solutions: Avoid impacts and scratches during transport and installation; touch up damaged areas with anti-rust paint; for humid or outdoor environments, select materials featuring a dual anti-corrosion treatment (galvanizing + powder coating).
- Causes: Measurement errors, support posts not being plumb (vertical), dimensional deviations in mesh panels, or non-standard installation procedures.
- Solutions: Use layout lines to guide installation and ensure support posts are plumb; select mesh panels of uniform specifications (preferably single-piece units); make fine adjustments to align panels before tightening fasteners.
- Causes: Failure to deburr (grind smooth) edges after cutting and punching; rough finishing of corners.
- Solutions: Purchase pre-finished products with deburred edges; on-site, grind down any sharp points or install protective edge trim.
- Causes: Insufficient wall thickness of support posts, flimsy base mounting, or lack of diagonal bracing.
- Solutions: For outdoor installations, use support posts and base flanges with thicker walls; install diagonal braces; arrange posts at appropriate intervals to enhance wind resistance and stability.
- Causes: High levels of airborne dust in the workshop environment; accumulation of debris clogging the perforations. - - Recommendation: Periodically clean using clear water or compressed air; maintain adequate ventilation in the environment to minimize dust accumulation.
- Cause: Arbitrarily removing mesh panels or creating openings for the passage of personnel or goods, thereby disrupting the integrity of the isolation layout.
- Recommendation: Unauthorized disassembly or modification is strictly prohibited; if access points are required, they must be custom-fabricated as designated doorways or secured access gates to ensure the integrity of the protective enclosure.
