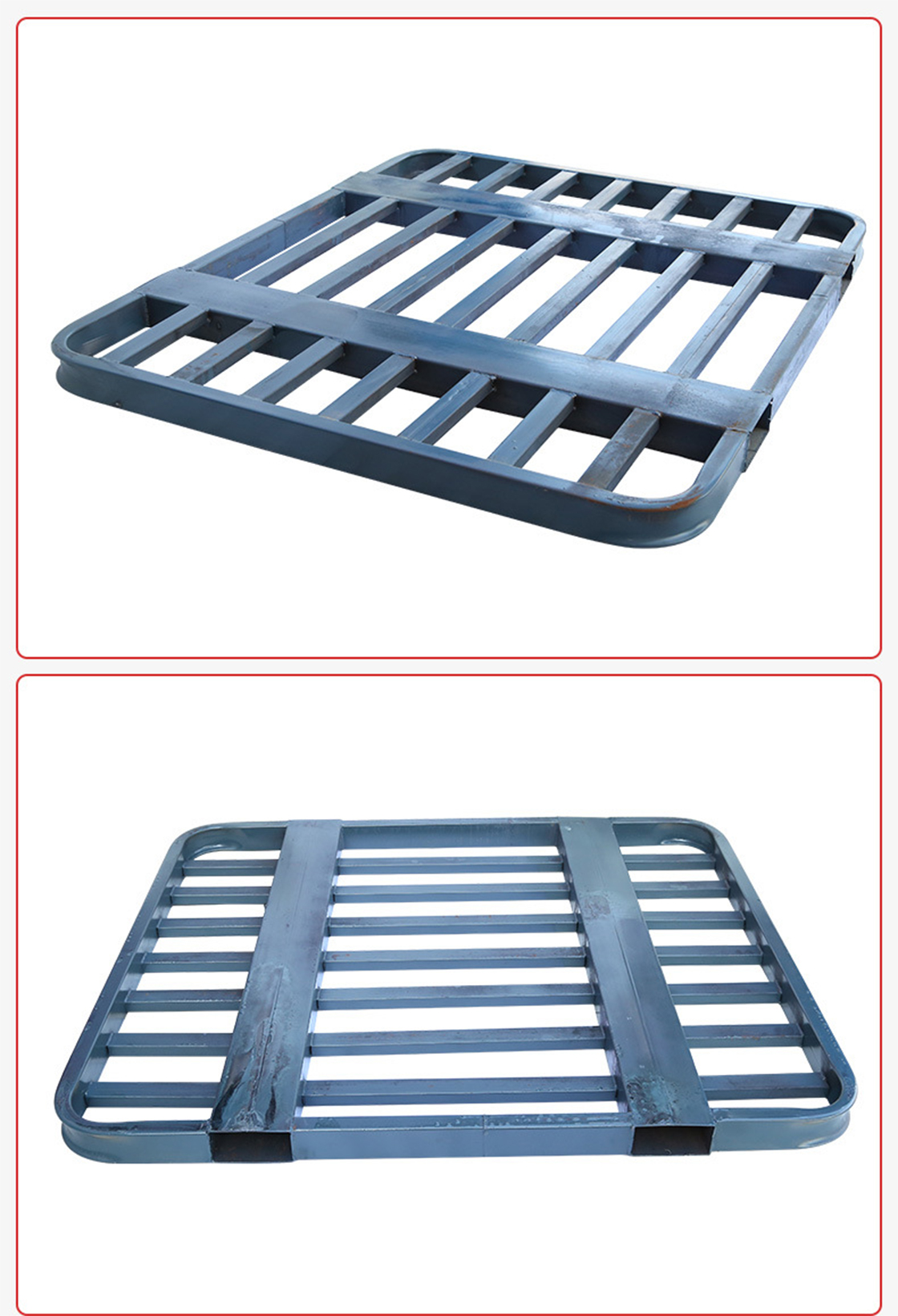

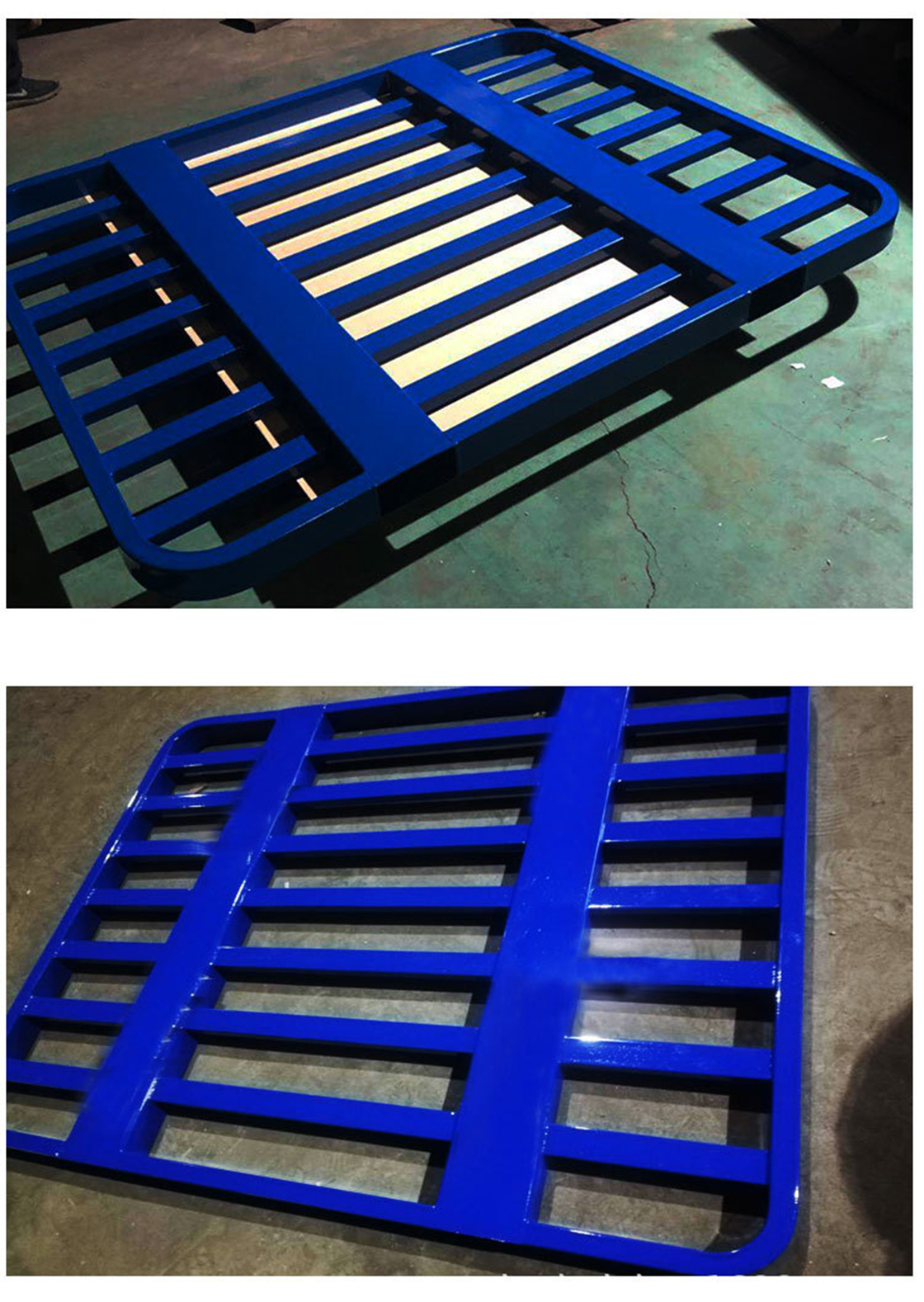

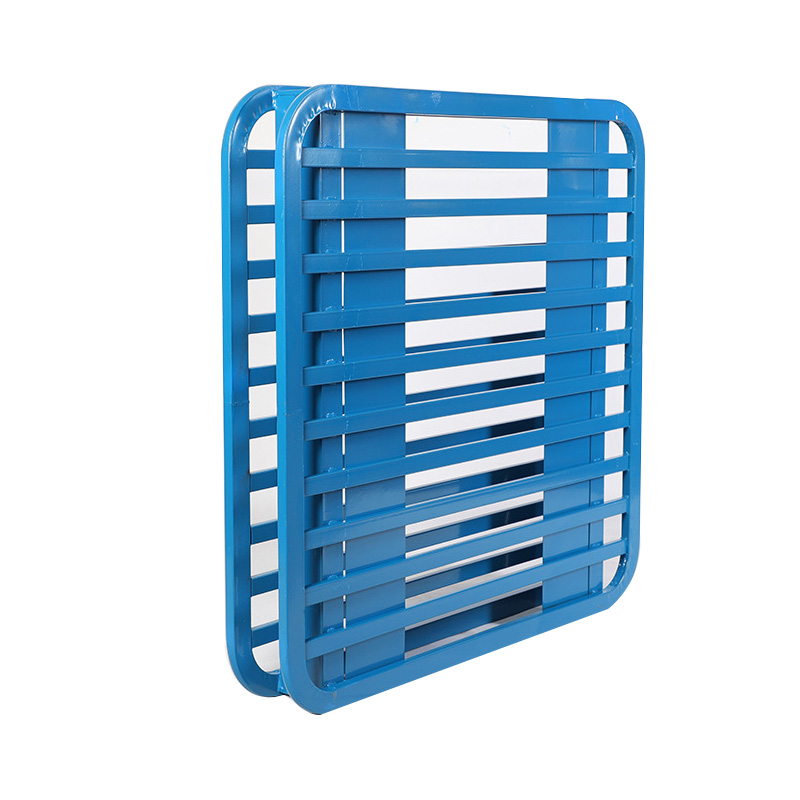

The Round-Cornered Steel Pallet is a heavy-duty industrial load-bearing pallet manufactured from high-quality Q235 cold-rolled steel. It undergoes a process of welding, reinforcement, and shaping, featuring rounded, blunted edges at all four corners. With a robust overall structure, it eliminates the sharp edges typical of traditional steel pallets. The surface is treated with anti-corrosion and anti-rust finishes, and the pallet is compatible with both four-way and two-way entry for forklifts and pallet jacks. Combining exceptional load-bearing capacity with enhanced safety, it is ideally suited for warehousing, logistics, and manufacturing environments where strict requirements exist for cargo protection and operational safety. It is designed for long-term, repetitive use within a circulation system.
Leveraging its all-steel construction, the pallet possesses superior load-bearing capabilities, allowing it to stably support various industrial components, full cartons, and heavy materials while ensuring the stability of stacked cargo.
The rounded-corner design eliminates sharp edges, preventing scratches to cargo during handling and protecting operators from injury, thereby minimizing damage to both personnel and goods caused by accidental bumps or contact.
Featuring a standard fork-entry structure, it integrates seamlessly with forklifts and manual pallet jacks, facilitating rapid loading, unloading, and transfer of goods to boost logistics turnover efficiency.
By elevating goods off the ground, the pallet provides effective protection against moisture, dust, and physical impact, thereby safeguarding the appearance and quality of the cargo from damage.
Suitable for direct floor stacking or rack storage, its uniform dimensions facilitate the neat and organized arrangement of goods, simplifying inventory management and stocktaking processes.
The rounded-corner structure helps absorb and buffer impact forces, reducing the risk of deformation or damage to the pallet's edges and corners. This extends the pallet's service life and lowers replacement and maintenance costs.
Round-Cornered Steel Pallet: Product Advantages, Features, and Technical Specifications
The exclusive rounded-corner design completely eliminates sharp edges. This prevents scratches to cargo packaging and delicate components during handling and storage, while also protecting operators from injury—thereby significantly enhancing overall operational safety.
Constructed from high-quality, all-steel materials, this pallet inherits the superior load-bearing advantages of traditional steel pallets. It demonstrates stable performance under both static and dynamic loads, effortlessly supporting heavy industrial materials, automotive parts, hardware, and other heavy goods without deforming or fracturing under prolonged heavy pressure.
The rounded-corner structure effectively absorbs the impact forces generated during forklift operations and cargo handling. This minimizes issues such as corner deformation, paint chipping, and cracking caused by bumps, resulting in a significantly longer service life compared to steel pallets with sharp, right-angle corners.
Combining the durability of steel with the safety benefits of a rounded-corner design, this pallet is ideally suited for environments with strict requirements for cargo protection and operational safety—such as the food, pharmaceutical, electronics, automotive parts, and high-end manufacturing sectors—while also serving effectively in general warehousing and logistics operations.
The seamless, all-steel construction features a smooth, flat surface with no gaps or crevices. The rounded corners eliminate "dead zones" where dirt can accumulate, making the pallet easy to wipe down and rinse off. It resists dust accumulation and dirt buildup, thereby meeting the stringent hygiene standards required for cleanrooms and high-standard warehousing facilities.
Constructed from robust and durable materials, the pallet is designed for long-term, repetitive use within a logistics cycle, eliminating the need for frequent replacements and significantly reducing an enterprise's procurement costs for warehousing consumables. Furthermore, as steel is a recyclable material, the product is environmentally friendly and non-polluting.
Steel pallets, also known as steel pallets, iron pallets, and metal pallets, are one of the important storage and transportation auxiliary equipment in modern industry. The main material is galvanized steel plate and steel, which are formed by special equipment, supported by various profiles, connected and strengthened by rivets, and then welded under C02 gas protection. Used for ground storage, shelf storage, cargo intermodal transportation, turnover and other ultra-light metal tray series.
1. The carrying capacity is the strongest in pallets.
2. Steel pallets are 100% environmentally friendly and can be recycled without wasting resources.
3. The surface of the steel tray shall be treated with a smooth surface and the periphery shall be wrapped. The tray chassis is solid, light in weight and strong in rigidity, with stable packaging performance;
4. Waterproof, moisture-proof and rustproof steel tray; Compared with wooden pallets, it has environmental advantages (such as the capacity of wooden pallets to breed pests); Compared with plastic pallets, it has strength, wear resistance, temperature resistance, and price advantages.
5. Especially when used for export, steel pallets do not require re steaming, high-temperature disinfection, or anti-corrosion treatment in accordance with international environmental regulations
6. Flexible use of steel pallets (4-way insertion design virtually improves the convenience of space utilization and operation, and its sturdy bottom plate design also conforms to the use of assembly lines and automatic packaging systems)

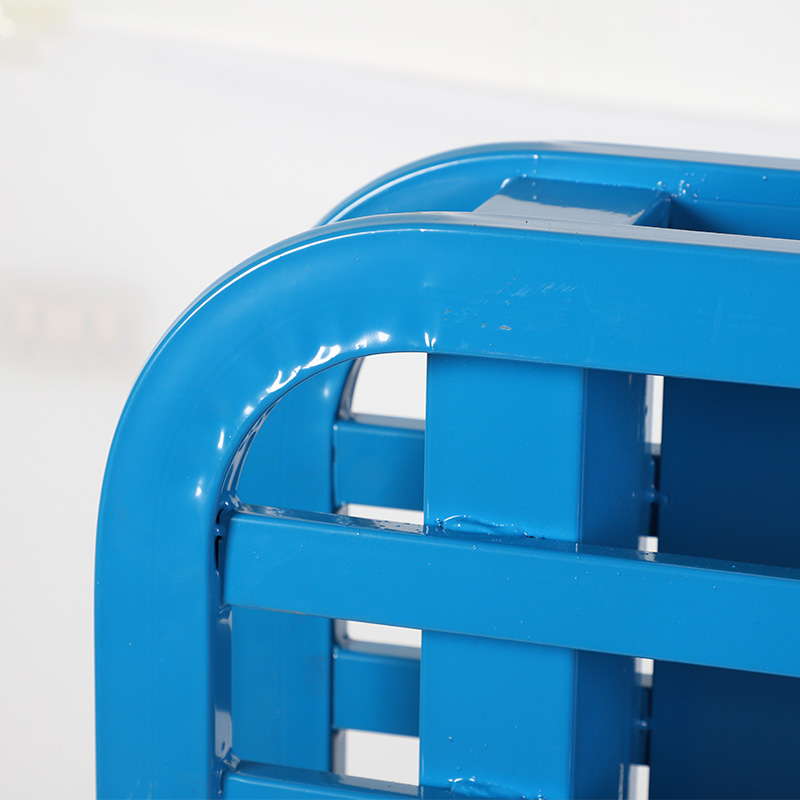

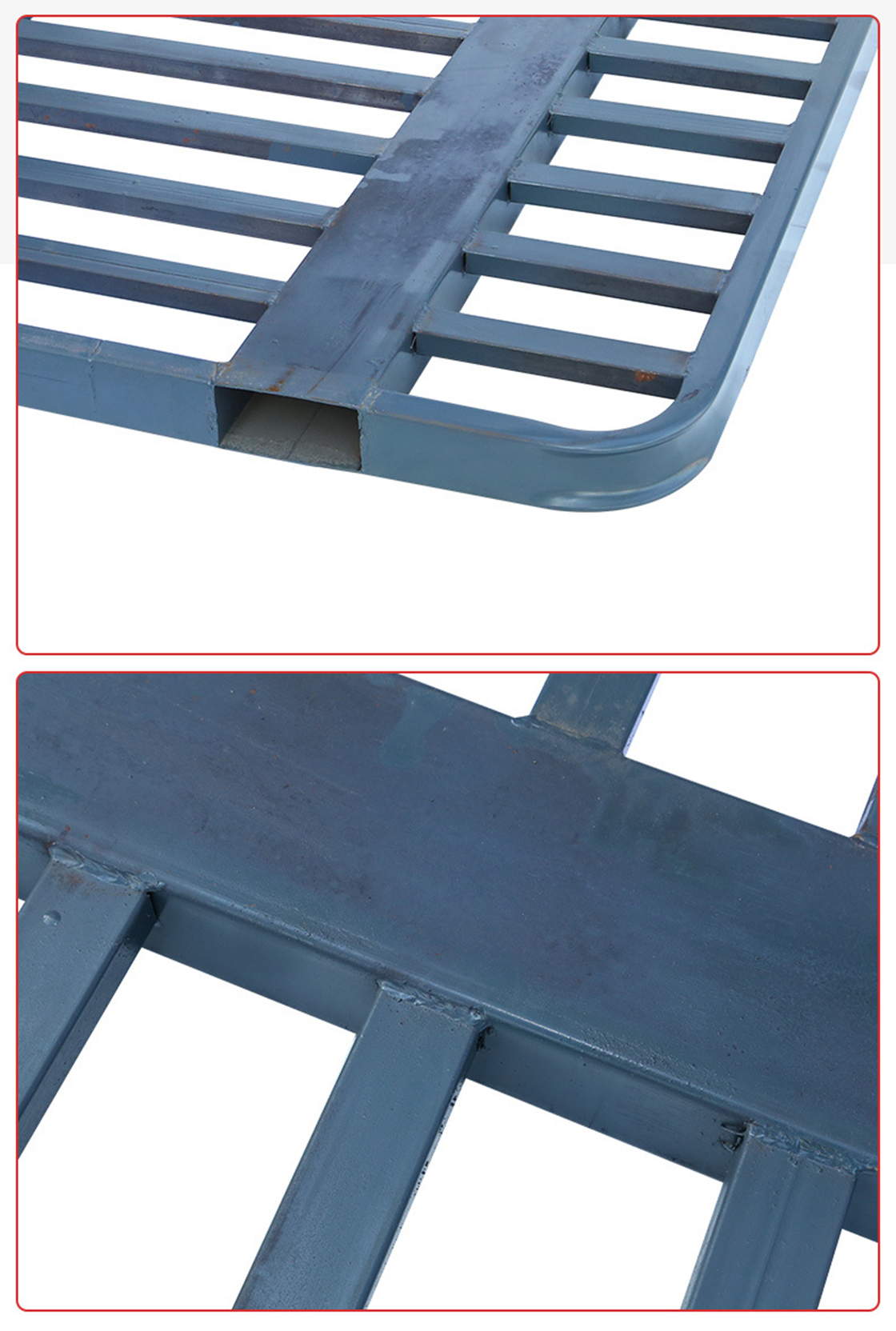

The four corners of the pallet are integrally molded with a large-radius curvature, resulting in smooth, rounded edges. This design not only enhances operational safety but also lends the product a more refined and aesthetically pleasing appearance.
Available in a variety of structural configurations—including "Chuan-style" (three-runner), "Tian-style" (perimeter-base), single-faced, and double-faced designs—and featuring a choice between solid-top or mesh-grid deck styles, the pallet is compatible with forklifts, pallet jacks, and high-rise racking systems, thereby meeting diverse warehousing and material handling requirements.
The pallet deck features built-in anti-slip textures and can be optionally fitted with additional anti-slip pads to prevent cargo from sliding or shifting during stacking. Additionally, the rounded-corner design facilitates easier alignment during stacking operations, resulting in enhanced overall stack stability.
Utilizing standard national dimensions and featuring a four-way/two-way fork entry design, this product is perfectly compatible with various types of forklifts and hydraulic pallet jacks. It can be placed directly onto shelving racks, offering exceptional versatility.
The surface undergoes a professional anti-corrosion treatment, making it moisture-proof, rust-proof, and resistant to oil stains. It ensures long-term usability even in humid or dusty workshop environments, while requiring only simple daily maintenance.
The main structure is constructed from high-strength Q235 cold-rolled steel plates and square tubing. The material is rigid, highly resistant to bending and compression, and possesses excellent mechanical properties, thereby guaranteeing robust load-bearing capacity and long-term structural stability.
Rounded corners are achieved through CNC bending and integrated stamping processes. The curvature is precise and uniform, with edges free of burrs or sharp cuts, ensuring full compliance with safety standards.

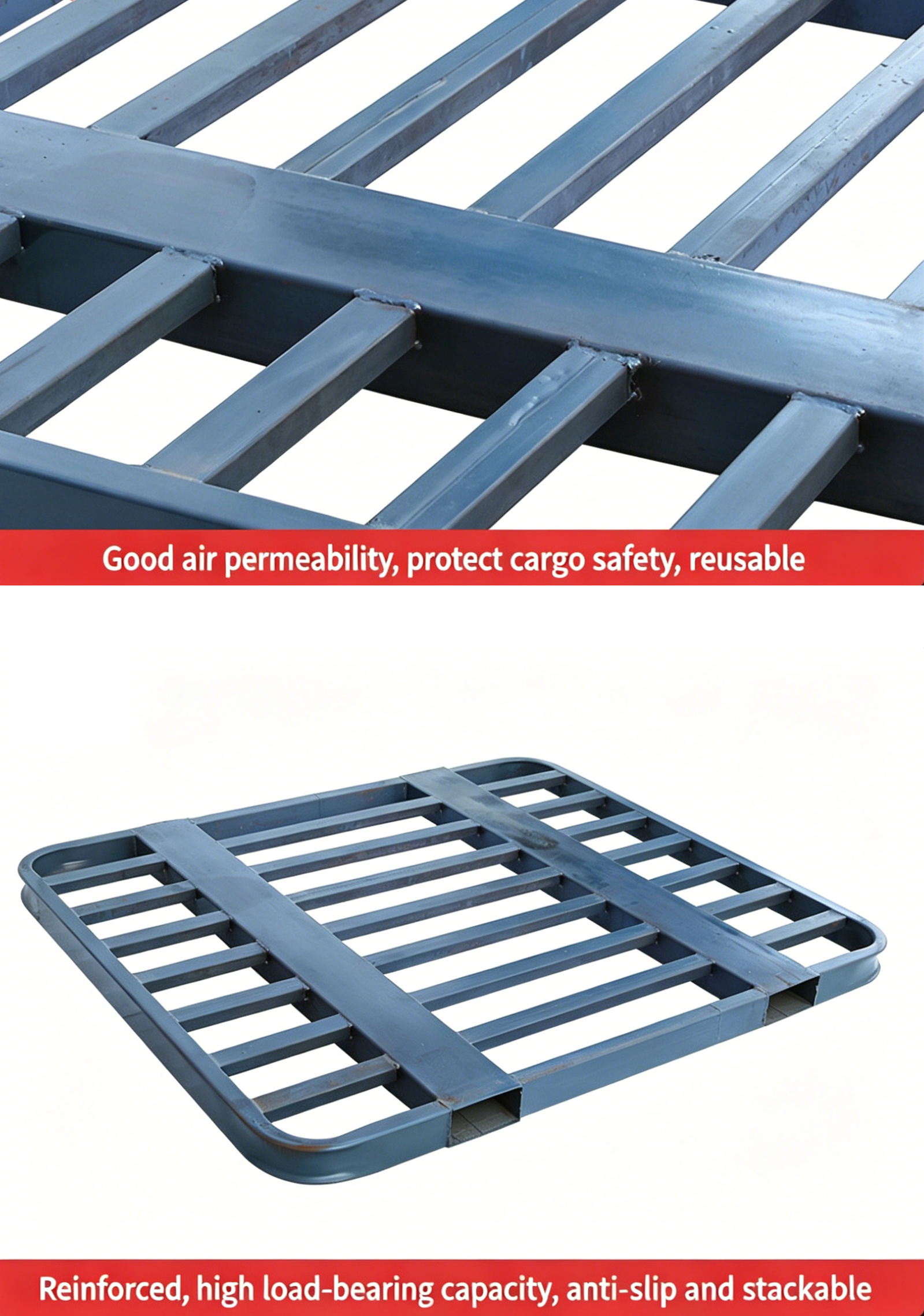

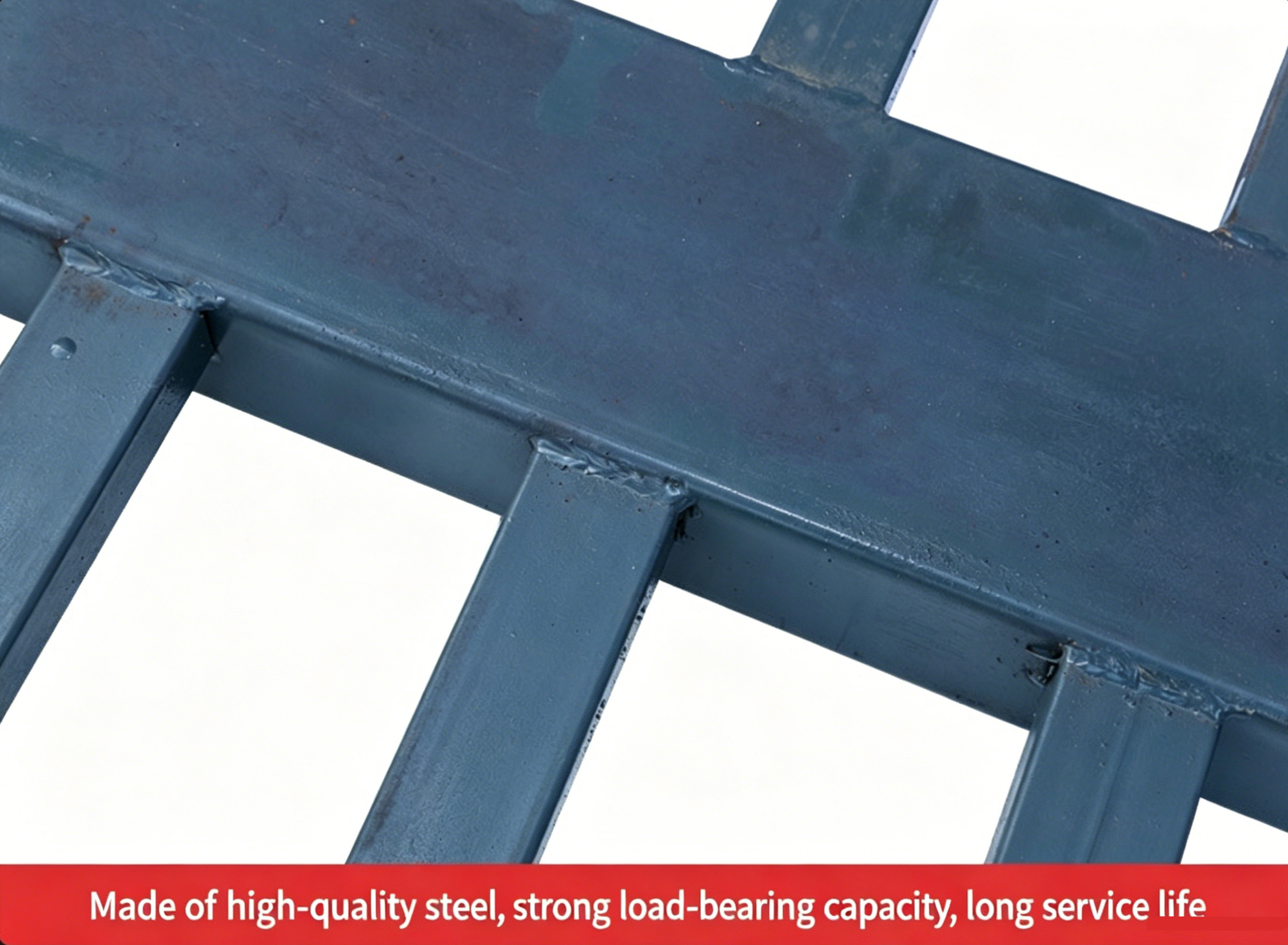

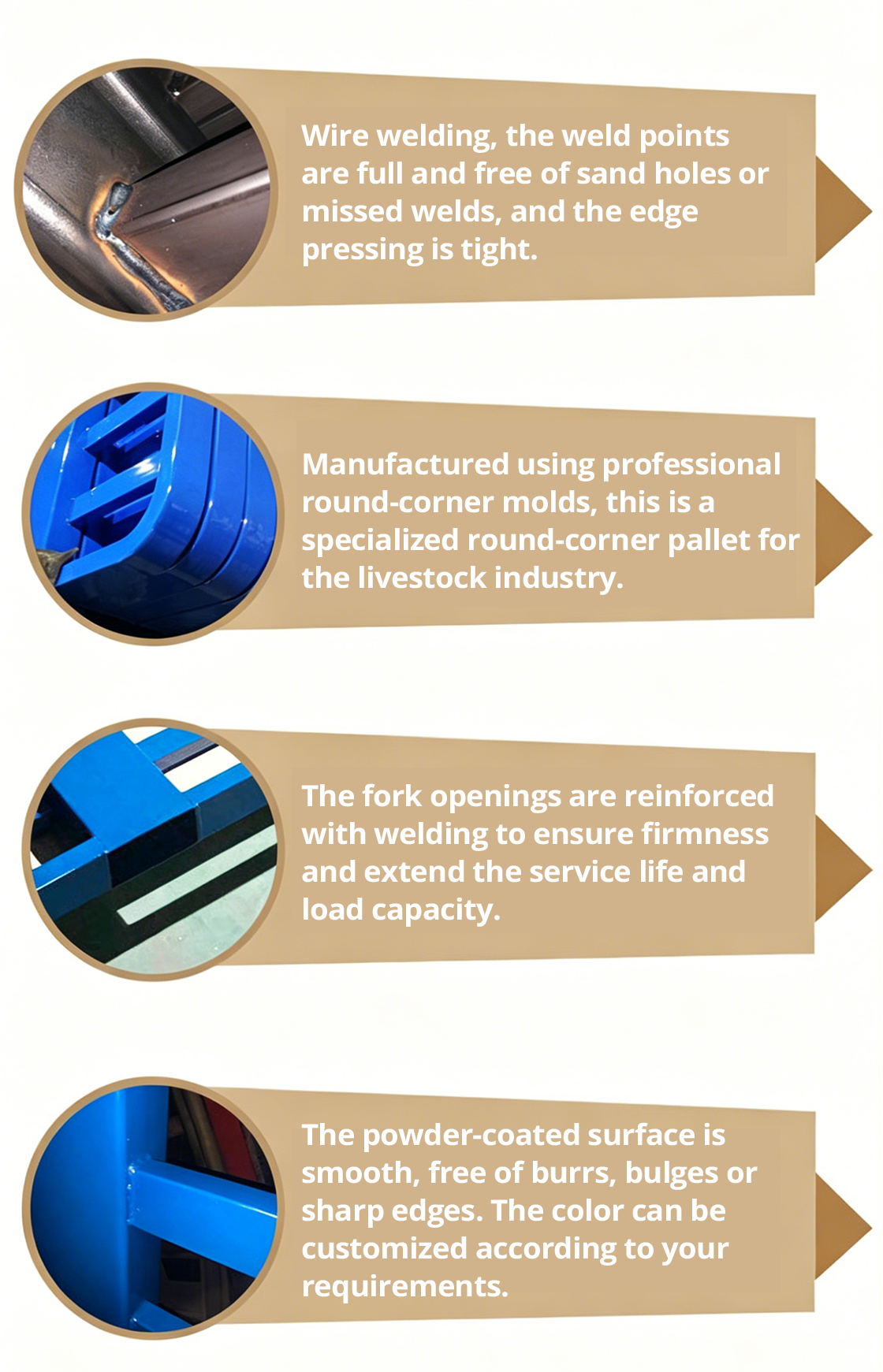

Critical load-bearing areas utilize a fully automated, continuous-weld process. The weld seams are uniform and robust—free from weak or missed welds—while reinforced ribs added to the base ensure even load distribution and effectively prevent structural deformation under heavy loads.
Surface finishes employ electrostatic powder coating, high-temperature baking paint, or hot-dip galvanizing processes. These coatings offer strong adhesion, rust and corrosion resistance, and scratch resistance, making the product suitable for a wide range of complex warehousing environments.
The fork entry height and overall dimensions comply with industry standards. The mechanical structure is scientifically sound and rational, ensuring uniform load distribution while balancing the operational convenience for forklifts with the inherent stability of the pallet itself.
All corners and edges are ground down and blunted to eliminate sharp cuts, and the overall structure features no protruding weld points. These details further enhance operational safety and eliminate potential hazards such as accidental scrapes or injuries.
Main Body Material : Q235 High-Quality Thickened Cold-Rolled Steel Plate; Cold-Rolled Square Tubing / Channel Steel
Panel Material & Thickness ： Flat-Top Model: 1.2mm, 1.5mm, 2.0mm Cold-Rolled Steel Plate
Support Structure Specifications : Support Legs: 40×40mm, 50×50mm, 60×40mm Square Tubing; Thickness: 1.2–3.0mm
Rounded Corner Process : Integrated CNC Bending for Seamless Arc Formation; Rounded Corners Feature Blunt-Edge Treatment (No Sharp Edges or Burrs)
Standard External Dimensions (L × W) : 1000×800mm, 1200×1000mm, 1100×1100mm, 1200×1200mm (Custom sizes available)
Standard Pallet Height : 120mm, 150mm, 160mm (Compatible with standard forklift/pallet jack entry)
Structure Type : "Chuan" (Three-Runner) Style, "Tian" (Perimeter-Base) Style, Single-Sided Use, Double-Sided Heavy-Duty
Fork Entry Method : Two-Way Entry, Four-Way Entry
Rated Dynamic Load : 1.0t, 1.5t, 2.0t, 3.0t
Rated Static Load : 2.0t, 3.0t, 5.0t, 6.0t
Rack Load Capacity : 0.8t, 1.0t, 1.5t, 2.0t
Welding Process : Uniform and Robust Welds (No "Cold" Welds); Welded Joints Ground Smooth and Flat
Surface Treatment : Electrostatic Powder Coating, High-Temperature Baked Enamel, Hot-Dip Galvanizing (Corrosion/Rust Protection Options Available)
Anti-Slip Design : Anti-Slip Texture on Panel Surface; Anti-Slip Rubber Pads on Support Legs
Product Weight : 25–55kg (Varies based on dimensions, plate thickness, and structure)
Applicable Scenarios : High-End Manufacturing, Auto Parts, Electronics, Food & Pharmaceuticals, High-Standard Warehousing, Logistics & Transit Centers
Product Features : Rounded Corners (Anti-Scratch/Anti-Collision), High Load-Bearing Capacity, Impact Resistance, Rust-Proof & Durable, Stackable & Recyclable
Ideal for storing auto parts, stamped components, and precision assemblies; features rounded corners to prevent scratching, protecting both the workpieces and their packaging; suitable for workshop circulation and warehouse rack storage.
Designed for the storage and transport of mechanical equipment parts, precision hardware, and instrument materials; features no sharp edges to prevent scratching of goods or injury to operators, ensuring safer operations.
Suitable for cargo consolidation, loading/unloading, and long-distance transit; offers high impact resistance and compressive strength; rounded corners minimize damage from bumps and collisions, making it ideal for high-frequency, cyclical use.
Features a smooth surface that is easy to rinse and clean, eliminating hygiene blind spots; rust-proof and corrosion-resistant; the rounded-corner design ensures safety and regulatory compliance, meeting the strict requirements of clean storage environments.
Used for storing appliance components and electronic materials; prevents sharp edges and corners from scratching product casings and packaging, thereby ensuring the integrity of the finished products.
Constructed with an all-steel structure that is moisture-proof, mold-resistant, and rust-free; impervious to low-temperature and high-humidity environments; serves as a superior alternative to wood or plastic pallets, offering a significantly longer service life.
Designed for the stacking and load-bearing of heavy materials and metal goods; offers exceptional stability under heavy loads; rounded corners provide a buffering effect against collisions, minimizing damage to both the pallet and the cargo.
Facilitates material circulation along production lines and temporary material staging at workstations; during handling and maneuvering, the rounded design prevents accidental scratching of walls, equipment, and personnel, ensuring a safer working environment within the facility.
- Causes: Hard impacts from forklifts, rough stacking practices, or prolonged compressive stress applied to the corners.
- Recommendations: Enforce strict forklift operating protocols to prohibit forceful bumping or ramming; ensure proper alignment and gentle handling during stacking; promptly correct any deformation or damage to the affected areas; for heavy-duty applications, select the thickened and reinforced pallet models.
- Causes: Damp warehouse conditions, exposure to rain and sun, scratches or damage to the paint finish, or exposure to oily and corrosive environments.
- Recommendations: Maintain a dry and well-ventilated storage area; avoid outdoor storage; sand down and touch up paint on damaged areas; for damp or corrosive environments, opt for hot-dip galvanized round-corner steel pallets.
- Causes: Overloading, concentrating the entire load at a single point, or a lack of reinforcing ribs.
- Recommendations: Strictly adhere to specified dynamic and static load limits; distribute goods evenly across the pallet surface; for heavy-duty applications, select reinforced, thickened models featuring a "field-grid" (Tian-shaped) rib structure.
- Causes: Frequent impacts, prolonged vibration, or poor welding workmanship.
- Recommendations: Avoid rough handling, such as forceful dragging or dropping; conduct periodic inspections of weld seams; re-weld and reinforce any cracked areas.
- Causes: An overly smooth pallet surface, a lack of anti-slip features, or irregular stacking of goods.
- Recommendations: Select pallets with anti-slip surfaces or install anti-slip rubber mats; center the load on the pallet to ensure a balanced center of gravity and avoid off-center loading.
- Causes: Deformed support legs, misaligned fork entry slots, or uneven flooring.
- Recommendations: Periodically straighten any deformed support legs; ensure that pallets used together are of matching specifications; align the forklift carefully and insert forks smoothly—do not force them in.
- Causes: Inadequate edge grinding/finishing, or residual burrs left over from the cutting and manufacturing process.
- Recommendations: Request precision grinding/finishing from the supplier at the time of purchase; perform a quick visual check before daily use and manually file down any visible burrs.
- Causes: Stacking pallets too high, misalignment between stacked layers, or deformation of the pallet base.
- Recommendations: Limit the number of stacked layers; ensure that upper and lower pallets are perfectly aligned; do not stack deformed pallets—use them only individually on a flat, level surface.
