The Access Platform Cart (also known as an access platform or picking ladder) is an aerial work device constructed primarily from steel, featuring non-slip steps and safety guardrails. Capable of both manual and electric lifting, it enables personnel to safely reach elevated positions to perform tasks such as picking goods, equipment maintenance, and installation work. It is widely utilized in various settings, including warehouses, workshops, and retail supermarkets.
Equipped with guardrails and non-slip features, it allows personnel to stand safely at heights to retrieve and place goods.
Facilitates the completion of elevated tasks such as equipment inspection and maintenance, lighting installation, and shelving upkeep.
Fitted with casters at the base, it can be easily pushed and maneuvered within workshops and warehouses to reach various work locations.
Features manual hydraulic or electric drive systems to adjust the working height, accommodating spaces with varying ceiling heights.
Boasts a robust steel structure design with strong load-bearing capacity, ensuring the platform remains stable and free of wobbling while in use.
Features an intuitive design that allows a single person to handle lifting, moving, and positioning tasks without requiring specialized technical skills.
Equipped with fully enclosed safety guardrails, non-slip steps, and braking mechanisms, it provides comprehensive protection for operators, effectively eliminating the risks of falling from heights or slipping, thereby ensuring safety during aerial operations.
Fitted with universal swivel casters at the base, it offers smooth movement and flexible steering, allowing for easy navigation through warehouses, workshops, supermarkets, and other areas to meet the demands of multi-point elevated operations.
Highly versatile, it is suitable for a diverse array of elevated tasks, including high-level picking in warehouses, shelf organization, equipment maintenance, facility upkeep, and stocking shelves in retail environments.
Features a reinforced steel frame structure with exceptional load-bearing performance; the working platform remains stable and free of wobbling, ensuring safety whether the task is performed by a single operator or a two-person team.
Requires no complex training; a single individual can easily handle the moving, lifting, and positioning tasks. With selectable manual or electric lifting modes, it significantly reduces the physical effort and difficulty associated with the work.
Featuring a compact structure, the unit occupies minimal floor space and can access narrow work areas. When not in use, it is easy to store and does not obstruct site traffic.

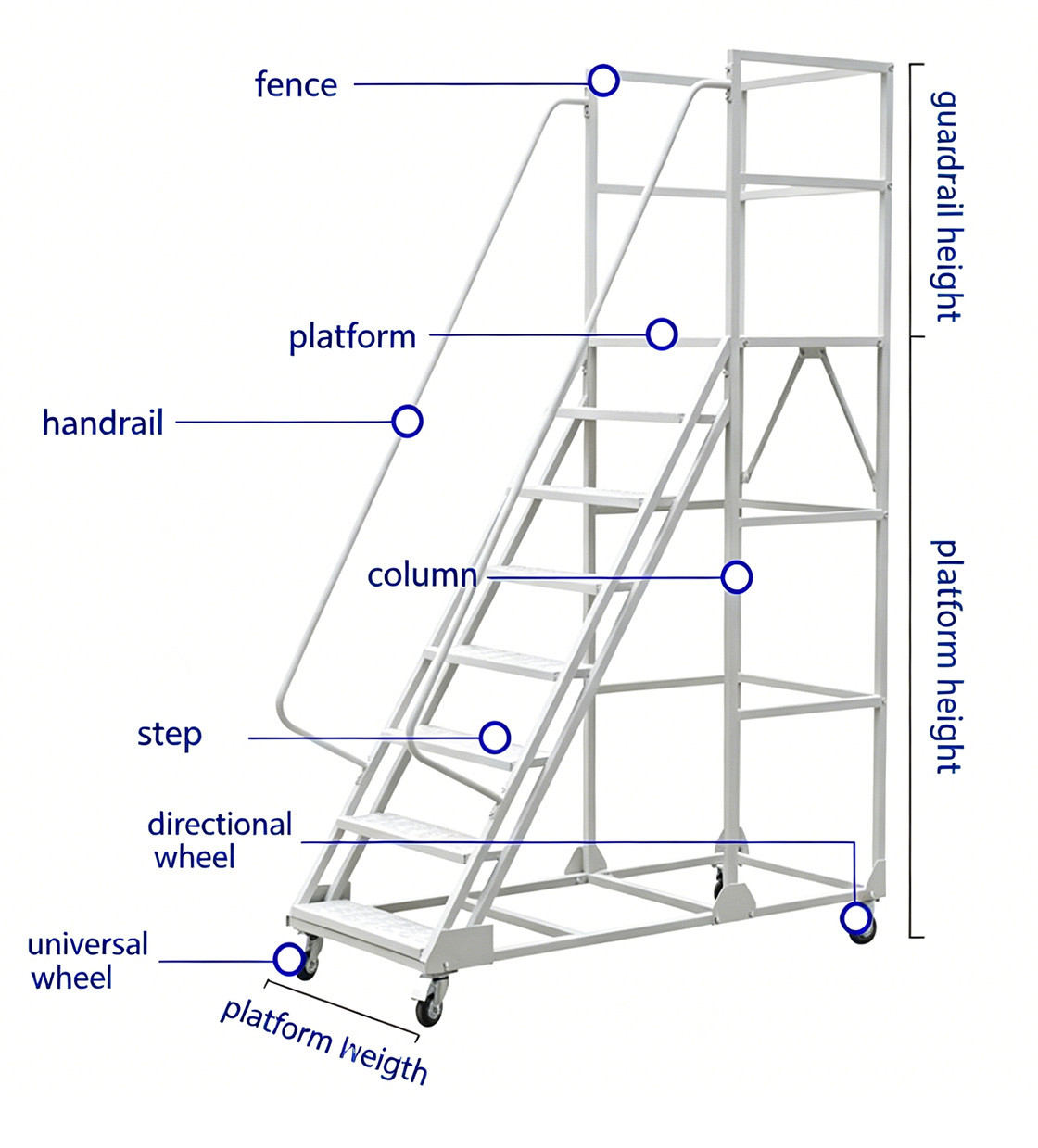

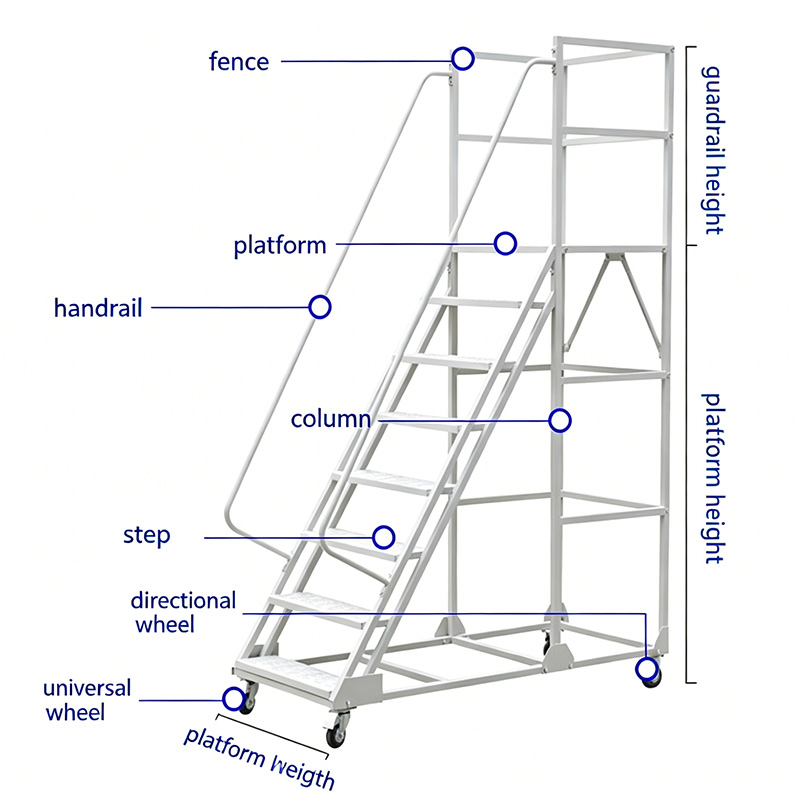

One side of the mobile access platform features a set of steps (equipped with handrails) allowing users to ascend to the platform level. The remaining three sides of the platform are fitted with guardrails to ensure the safety of the operator. The platform's working surface is typically sized to comfortably accommodate one to two individuals standing, turning, and moving about. From the platform, users can perform tasks such as retrieving or stacking items on high shelves or other elevated surfaces. Additionally, the unit is equipped with casters, allowing users to easily push, pull, and maneuver the platform with speed and convenience. Specifically, the front casters are fitted with wheel brakes; once engaged, these brakes firmly lock the unit in place, enabling users to perform elevated operations with complete safety and peace of mind.
1. The mobile access platform features a sturdy structure, offers convenient mobility, and ensures safe operation. It significantly boosts work efficiency and expands operational reach, making it an essential piece of equipment for elevated tasks in a wide range of settings—including factories, warehouses, shopping malls, and supermarkets.
2. Constructed from high-quality steel and fitted with premium casters, the unit offers exceptional mobility and flexibility. It features two swivel casters (PU material) and two swivel casters with brakes (PU material), ensuring a stable and reliable performance.
3. When shelf heights exceed a person's natural reach, retrieving or placing items at elevated levels can be extremely difficult; the mobile access platform effortlessly resolves this challenge by providing you with the precise working height you require.
4. The surface undergoes an anti-corrosion powder-coating treatment. Shanghai Youteng's mobile access platforms are manufactured using high-grade steel and undergo a comprehensive finishing process that includes acid pickling, rust removal, phosphating, electrostatic powder coating, and high-temperature baking.
Equipped with full perimeter guardrails, anti-slip textured treads, safety latches, and caster brakes—this multi-layered safety design effectively eliminates potential hazards associated with working at heights.
The platform height can be freely adjusted to meet specific operational requirements, making it adaptable to various ceiling heights and diverse work scenarios.
The platform features rounded corners and comfortable handrails; the spacing between treads is ergonomically optimized to minimize fatigue during prolonged use, ensuring a more comfortable working experience.
The casters are equipped with a self-locking brake function, allowing for one-touch locking during operation. This prevents the cart from sliding or shifting, ensuring exceptionally stable positioning.
Constructed from sturdy, wear-resistant materials, the unit is highly resistant to impacts and deformation. It requires no complex daily maintenance and offers a long service life.
Utilizes high-strength Q235 cold-rolled steel tubing and plates. This robust material offers superior bending and compression resistance, guaranteeing the overall structural integrity and load-bearing stability of the unit.
Employs a fully automated, continuous-weld process. The weld seams are strong, uniform, and free of defects, ensuring tight structural connections that remain intact and free from deformation even after prolonged use.
The platform treads feature a textured anti-slip surface or anti-slip rubber mats to increase friction and prevent operators from slipping.
Equipped with either a manual hydraulic or electric lifting system, the unit ensures smooth, jerk-free vertical movement. Precise height adjustment enhances safety throughout the entire operation.
Fitted with silent, omnidirectional PU casters that allow for noise-free movement without damaging floor surfaces. These casters are wear-resistant and pressure-resistant, ensuring smooth, snag-free mobility.
The surface undergoes electrostatic powder coating and baking paint treatment, resulting in a uniform coating with strong adhesion that is rust-proof and corrosion-resistant, making it suitable for various warehouse operational environments.
Main Frame : Integrated frame with reinforced welding; stable and wobble-free | Q235 thickened high-quality steel tubing; high strength and excellent toughness
Step Platforms : Anti-slip checkered plates; ergonomically spaced steps; high load-bearing capacity | Anti-slip cold-rolled checkered steel plates; wear-resistant and impact-resistant
Safety Guardrails : Fully enclosed, heightened guardrails; sturdy handrails; fall prevention | Thin-walled high-frequency welded tubing; integrally welded structure
Casters : 2 fixed + 2 swivel casters; equipped with brake locks; silent and wear-resistant | Silent PU wheels; thickened caster frames; flexible rotation
Lifting Mechanism : Manual hydraulic / Electric lifting (optional); smooth and steady lifting | Thickened hydraulic cylinders; wear-resistant seals
Rated Load Capacity : Standard: 200kg–300kg | Integrated structural reinforcement design; uniform load distribution

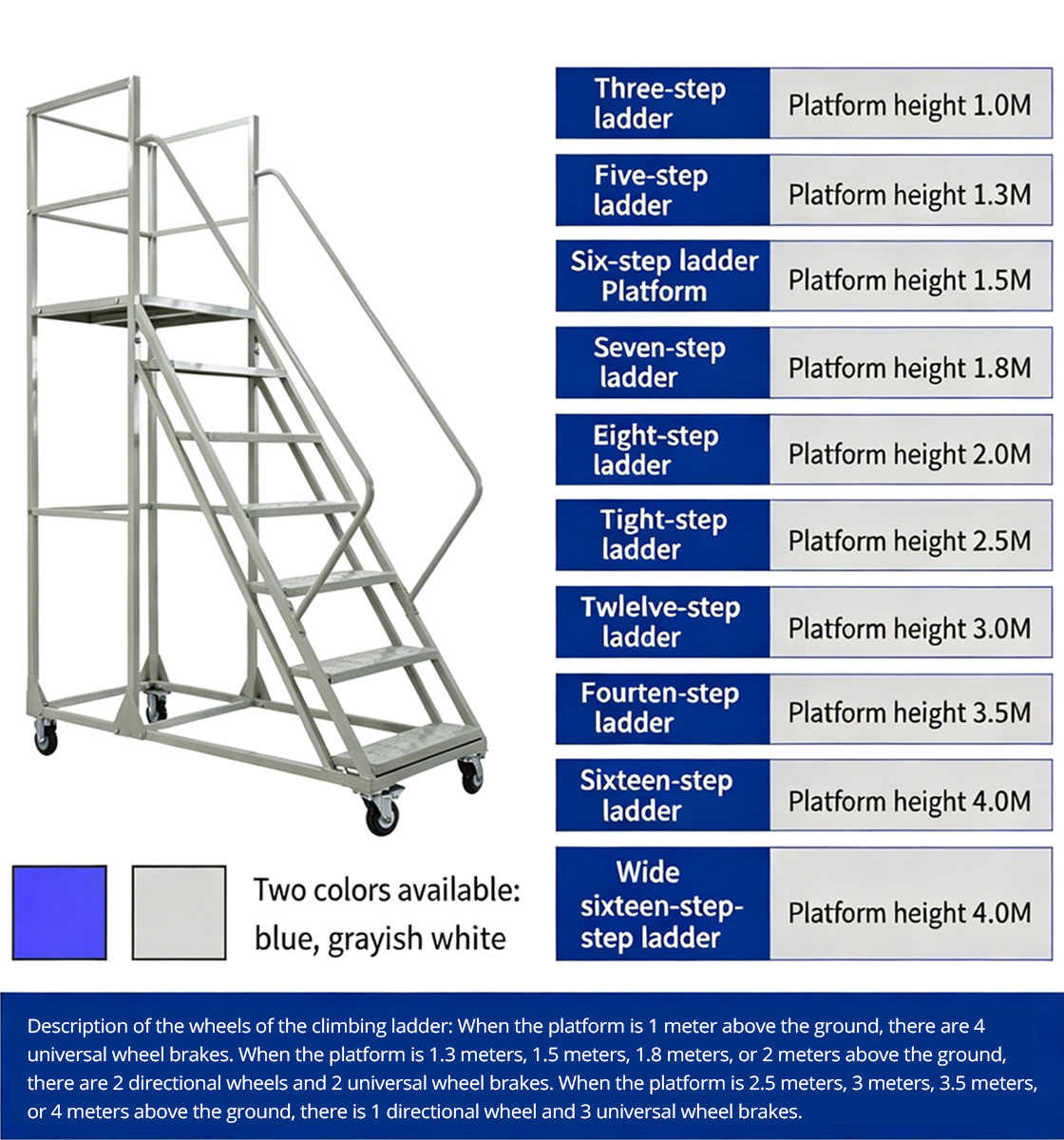

Working Height : Climbing height: 1.2m–3.5m; multiple specifications available | Heights can be customized upon request
Surface Treatment : Acid pickling & phosphating + Electrostatic powder coating | Eco-friendly powder coating; corrosion-resistant, impact-resistant, and chip-resistant
Base Structure : Thickened chassis; reinforced crossbeams; anti-tilt design | Thickened steel plates + square tubing splicing reinforcement
Overall Features : Flexible mobility; simple operation; self-locking docking; comprehensive safety protection | Industrial-grade materials; suitable for long-term, high-frequency use in warehouses
Facilitates the circulation of production line materials, semi-finished goods, and auxiliary supplies; enables distribution and transfer between workstations to boost production line efficiency.
Supports goods picking, order preparation, restocking, and categorized storage; facilitates short-distance transport within warehouse zones; ensures organized and tidy storage.
Enables the collection, sorting, temporary storage, and circulation of parcels and small items; facilitates convenient loading/unloading and efficient turnover.
Stocking shelves, backroom inventory organization, daily necessities replenishment; features silent operation and protects flooring.
Order sorting, packing and transfer, centralized storage of small items; lightweight, flexible, and easy to manage.
Handling and storage of medicines, snacks, and packaged foods; clean, dust-proof, and hygienic.
Material transport, storage of cleaning tools, distribution of logistical supplies; operates silently without causing disturbance.
Temporary cargo transfer, material organization, daily warehouse tidying; foldable design saves space when not in use.
1. Distribute cargo evenly with the center of gravity centered; avoid off-center loads or placing excessive weight on one side.
2. Place heavier items at the bottom and lighter items on top; ensure cargo does not extend beyond the cart's railings or exceed the maximum stacking height.
3. Overloading is strictly prohibited; carrying passengers or standing on the cart to perform tasks is forbidden.
1. First, release the caster brakes; grasp the handlebars with both hands and push at a steady, smooth pace.
2. Slow down when turning corners, navigating aisles, traversing ramps, or crossing thresholds; avoid sudden forceful pushes, abrupt braking, or allowing the cart to roll freely.
3. Reduce the load when traveling over uneven surfaces to prevent jolting or tipping.
1. Park the cart on level ground; do not leave it stationary on a ramp for extended periods.
2. Once the cart has come to a complete stop, engage the brakes to lock the wheels and prevent accidental sliding or rolling.
1. The cart must be completely unloaded before folding; folding the cart while it still contains cargo is prohibited.
2. Release the latches/buckles, then fold down the four side railings in sequence; once folded, store the cart in a neat and orderly manner.
3. Folded carts can be stacked vertically for storage, thereby saving warehouse space.
1. Do not drag the cart forcefully or allow it to collide violently with shelving units, walls, or support columns. 2. Do not climb on, sit or lie on, or attempt to climb over the cart.
3. In damp environments, prevent prolonged water accumulation to avoid rust and corrosion.
1. Daily Inspection: Casters, brakes, weld points, fence latches, and handrails.
2. If wheels bind or produce abnormal noises, immediately clear away any entangled debris and apply lubricant periodically.
3. Immediately remove from service and repair any cart exhibiting broken welds, deformation, or structural damage.
Causes: Debris (such as threads or wires) entangled in casters; rusted bearings; deformed wheel bodies; uneven flooring.
Solutions: Remove entangled debris/threads; lubricate wheel axles regularly; promptly replace damaged casters; use the cart on level surfaces whenever possible.
Causes: Overloading; forceful dragging; prolonged use on rough/bumpy surfaces; impact/collision.
Solutions: Strictly prohibit overloading; push and pull gently to minimize hard impacts; opt for thickened, wear-resistant PU casters; inspect wheel bodies regularly.
Causes: Worn brake pads; failed springs; aging casters.
Solutions: Always engage the brakes when parking; inspect brake components regularly; promptly replace damaged parts; strictly avoid parking on slopes for extended periods.
Causes: Deformed latches; spring fatigue; wear and tear from prolonged impact/collision.
Solutions: Ensure all latches are securely fastened after loading; straighten/correct deformed components; promptly replace worn parts to prevent cargo from falling.
Causes: Uneven load distribution/excessive weight; rough handling; collision with shelving units; stacking/compression stress.
Solutions: Distribute cargo evenly to keep the center of gravity centered; strictly avoid forceful impacts or rough pulling; re-weld and reinforce detached joints; retire and replace severely damaged units.
Causes: High warehouse humidity; standing water; prolonged exposure to rain; scratches on the paint surface.
Solutions: Keep the storage area dry and avoid outdoor storage; touch up scratched/chipped paint areas with anti-rust paint; opt for galvanized models in humid environments.
Causes: Deformed hinges; rust/corrosion causing stiffness; dust or debris accumulated in joints/crevices.
Solutions: Fold the cart only when it is unloaded; clean out debris/impurities; regularly lubricate moving parts/joints; straighten and repair deformed components.
Causes: Excessive stacking height, top-heavy load distribution, disorderly arrangement.
Recommendations: Place heavier items at the bottom and lighter ones at the top; limit stacking height; wrap and secure loose cargo; ensure cargo does not extend beyond the confines of the protective railings.
