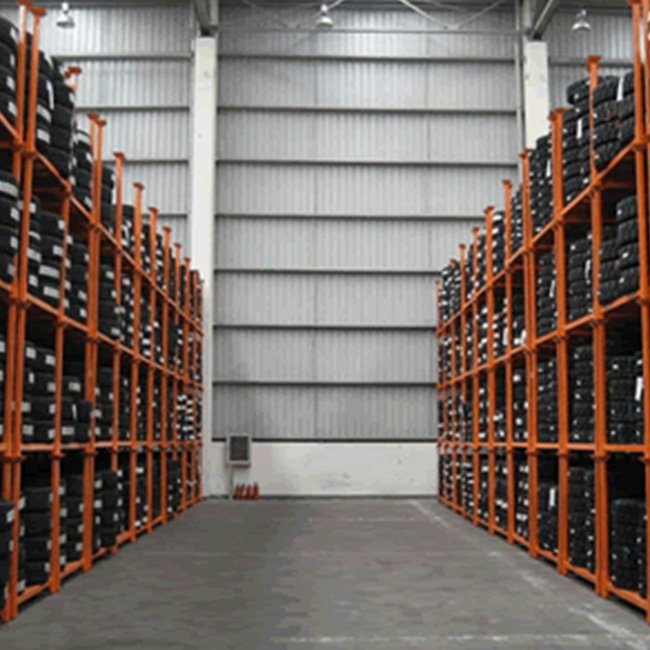

The Tube-Insert Stacking Rack is a novel type of modular warehousing and turnover equipment characterized by its detachable, foldable, and flexibly combinable design. Unlike traditional welded stacking racks, it employs a unique structural design featuring uprights with tube-insert connections. This allows for rapid assembly, folding, and disassembly without the need for any tools, effectively combining the high load-bearing capacity of fixed stacking racks with the space-saving flexibility of foldable models.
This solution is specifically tailored to address key pain points faced by enterprises-such as cluttered storage of loose goods, semi-finished products, components, luggage, textiles, and hardware; low space utilization; inconvenient material turnover; and the floor space occupied by idle equipment. It offers a customized storage scheme that integrates both standardized and bespoke Tube-Insert Stacking Racks. This enables vertical stacking of goods, efficient material turnover, and standardized inventory management. Widely applicable across diverse industries and scenarios—including manufacturing workshops, e-commerce warehousing, logistics transit hubs, textiles and apparel, and hardware and automotive parts—this solution empowers enterprises to reduce costs, enhance efficiency, and optimize their warehouse layouts.
1. Production Workshops: Temporary storage of line-side materials, turnover of semi-finished products between processing stages, and organization of loose components.

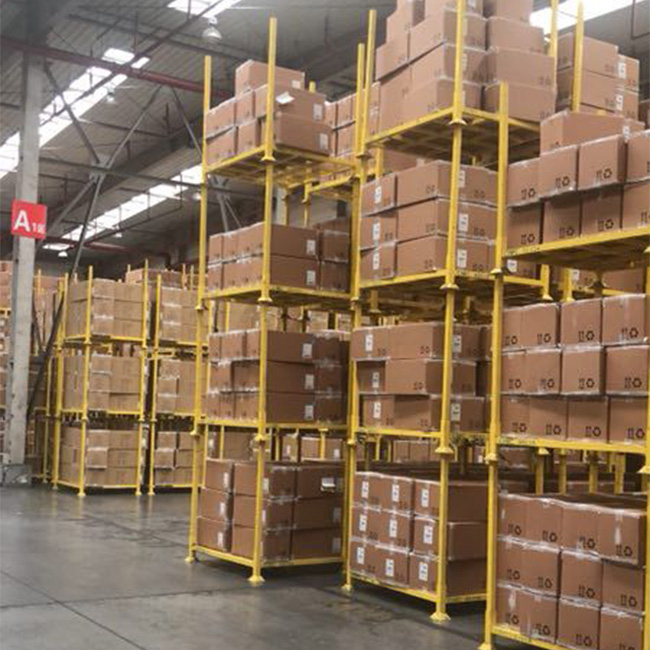

2. Warehouse Storage: Layered stacking and storage of loose goods and small-to-medium-sized finished products within flat-storage warehouses.
3. Logistics Transit: Sorting, consolidation, short-haul transfer, and temporary staging of goods.
4. Leased/Temporary Warehouses: Rapid deployment, flexible assembly and disassembly, and ease of relocation.

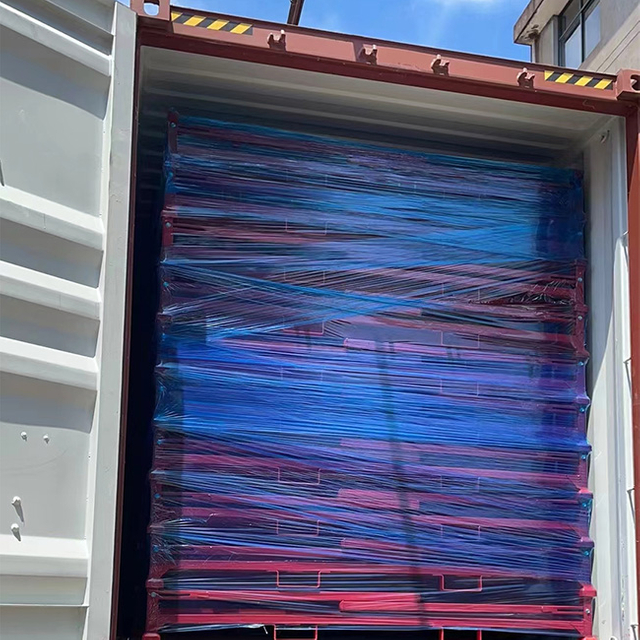

5. Multi-Site Transfers: Disassembly and transport of empty racks, resulting in significant reductions in logistics costs.
1. Traditional welded stacking racks are non-dismountable; they occupy significant floor space when idle and incur high transportation costs.
2. Goods are often stacked directly on the floor, resulting in severe underutilization of vertical warehouse space and insufficient storage capacity.
3. Loose items and small materials are frequently mixed together, leading to inefficient inventory counting and retrieval processes, as well as a high risk of loss or damage.
4. Simple storage containers often lack sufficient load-bearing capacity and are prone to deformation, rendering them incapable of meeting the requirements for multi-tier stacking.
5. During warehouse relocations or facility layout adjustments, fixed-structure equipment cannot be easily dismantled or reconfigured, resulting in low asset utilization rates.

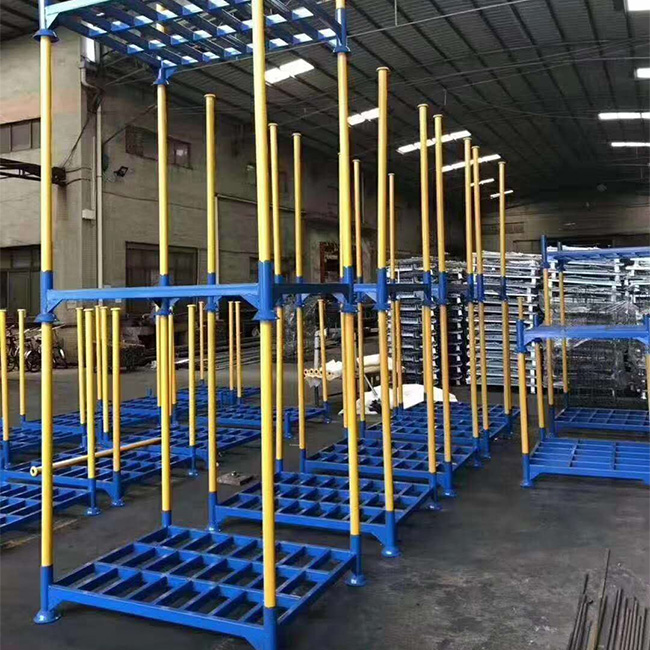

The insert-tube stacking rack primarily consists of vertical insert tubes, a base frame, crossbeams, reinforcing support bars, and anti-slip foot pads. It utilizes a male-female insert-tube connection mechanism, allowing for assembly without the need for screws or tools-the unit takes shape with a simple insertion. When folding, one simply needs to disengage the tubes to allow the vertical posts to collapse and lie flat; the overall structure is robust, and assembly/disassembly is highly convenient.
1. Flexible Assembly Principle: Featuring a purely insert-based structure, assembly, folding, and disassembly can be completed entirely by hand-no tools are required at any stage-ensuring simple and effortless operation.
2. High Load-Bearing Stability Principle: Constructed from thickened Q235 structural steel and engineered with sound structural mechanics, the rack remains stable and free from deformation even when stacked in multiple tiers.
3. Space Optimization Principle: When unloaded, the racks can be folded and collapsed to save over 70% of idle floor space; when loaded, they allow for efficient multi-tier vertical stacking.
4. Durability and Versatility Principle: The surface undergoes electrostatic powder coating for rust prevention, offering excellent resistance to abrasion and impact; the racks are compatible with various types of forklifts and hydraulic pallet jacks.
5. Safety and Protection Principle: Features include rounded and polished corners, anti-slip positioning mechanisms for the vertical posts, and a reinforced base design to effectively prevent goods from sliding off and to eliminate the risk of the rack tipping over. IV. Product Classification and Suitable Goods
1. Standard Tube-Insert Stacking Racks
- Structural Features: Universal dimensions; integrated tube-insert structure; foldable and stackable; four-way forklift entry.
- Load-Bearing Parameters: Single-layer load capacity of 500–1500 kg; stackable up to 3–4 layers.

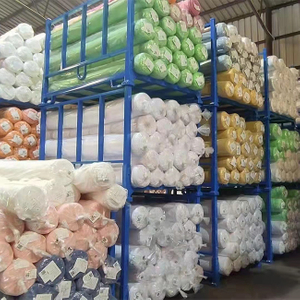

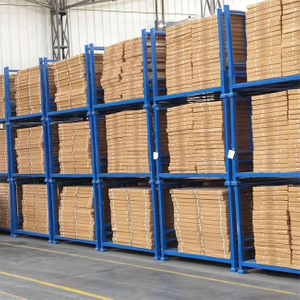

- Suitable Goods: Cartons, bags, apparel, hardware accessories, electronic components, general merchandise, and other regular-shaped small to medium-sized items.
2. Heavy-Duty Tube-Insert Stacking Racks
- Structural Features: Thicker steel, reinforced tubes, and a strengthened frame; offers superior overall load-bearing capacity and enhanced stability.

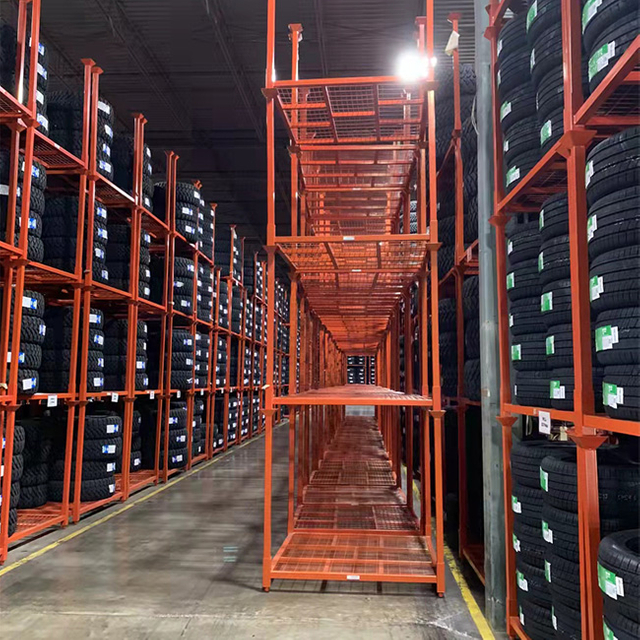

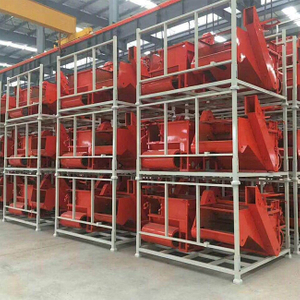

- Suitable Goods: Machinery parts, automotive components, castings, construction materials, raw materials, and other heavy-duty items.
3. Tube-Insert Stacking Racks with Shelves
- Structural Features: Equipped with removable steel shelves for layered storage; prevents goods from being crushed and facilitates clearer categorization.
- Suitable Goods: Loose small parts, semi-finished products, precision components, and items unsuitable for direct stacking.
4. Customized Tube-Insert Stacking Racks

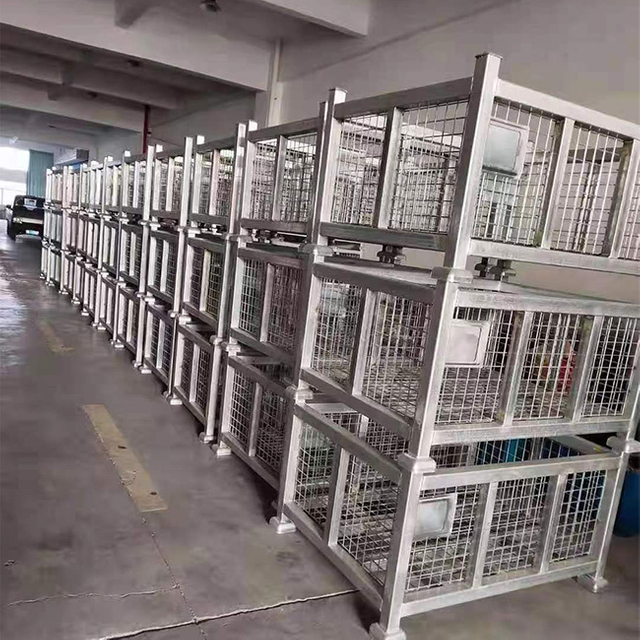

- Customization Options: Customizable dimensions and load capacities; optional additions include guardrails, casters, label holders, and anti-corrosion galvanized finishes.
- Suitable Goods: Irregularly shaped materials; goods intended for cold storage or humid environments; and goods specifically for export transit.
Features an innovative tube-insert structure that requires no tools; assembly or folding can be completed in just one minute. The process is simple enough for the elderly or female workers to handle with ease—simply set it up when needed and fold it away when idle.

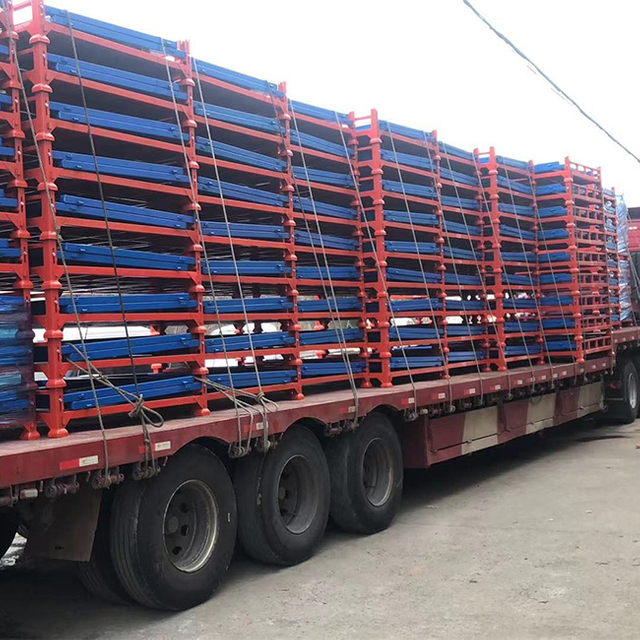

Enables multi-layer stacking even when fully loaded, making full use of vertical warehouse space and increasing storage capacity by 2–3 times. When empty and folded, the unit is only 15–20 cm thick, significantly reducing the floor space occupied by idle equipment and lowering both storage and transportation costs.
Constructed from thickened steel using an integrated molding process, the interlocking tubular joints fit tightly together, ensuring exceptional overall stability when stacked. Resistant to rust, abrasion, and impact, the units boast a service life of 8–10 years—significantly longer than that of standard material handling equipment.
Equipped with standard forklift slots at the base, the units are compatible with various handling devices, enabling more efficient transport and streamlined inbound/outbound warehouse operations. They are movable, stackable, and collapsible, making them universally applicable across workshops, warehouses, and logistics environments to meet material handling needs throughout the entire workflow.
Representing a one-time investment, the units can be repeatedly assembled, disassembled, and recycled, thereby eliminating the costs associated with frequent purchasing and wasted capital from idle equipment. No warehouse structural modifications are required; the solution can be rapidly deployed to significantly enhance warehouse management efficiency.
Goods can be categorized and stored in distinct layers, with provisions for attaching identification labels to facilitate inventory checks and sorting. This enables the implementation of standardized "5S" management practices in workshops and warehouses, effectively resolving the persistent problem of cluttered and disorganized goods.
We engage directly and precisely with the client to define specific requirements regarding product specifications, weight, storage volume, operational scenarios, and workflow methods, thereby identifying and prioritizing core usage needs.
Based on the assessment, we recommend either standard models or customized solutions tailored to specific dimensions, structural configurations, and load-bearing capacities. We then provide a detailed product proposal, layout schematics, and a comprehensive price quotation.
We utilize high-quality steel and employ standardized processes for cutting, welding, and powder coating. Rigorous quality control checks are conducted to verify the precision of the tubular joints and load-bearing performance, ensuring the highest standards of product quality.
We offer nationwide door-to-door delivery services. In-stock items are shipped immediately, while customized orders are delivered strictly according to schedule. On-site guidance is provided regarding proper assembly, folding, stacking, and operational protocols.
We provide comprehensive after-sales services, including product warranties, spare parts replacement, and repair/refurbishment options. We also offer lifetime technical support to address any issues that may arise throughout the entire product lifecycle.
This solution is widely applicable across various sectors, including textiles and apparel, e-commerce warehousing, logistics and express delivery, hardware and machinery, automotive parts, electronics and appliances, daily consumer goods, pharmaceuticals, and packaging products. It serves as an ideal solution for the storage of small-to-medium-sized materials and for in-workshop material turnover.
The tubular-insert stacking rack solution distinguishes itself through its core highlights: flexible assembly and disassembly, space-efficient design, high load-bearing capacity, and long service life. It perfectly addresses the shortcomings of traditional welded and collapsible stacking racks, offering a blend of both practicality and cost-effectiveness. Requiring neither complex installation nor warehouse structural modifications, it enables enterprises to rapidly achieve three-dimensional warehousing, streamlined material turnover, and standardized management—making it the preferred choice for optimizing warehousing logistics and reducing operational costs.
